This article will detail the different pneumatic fitting types, the key elements in selecting the pneumatic fitting sizes and provide a detail pneumatic fitting size chart to help factories and manufacturers better select suitable pneumatic connectors. As a key component of the pneumatic system, the adaptability of the pneumatic fittings directly affect the efficiency of the system. The following is a detailed guide for selecting pneumatic fittings.
What are pneumatic fittings?
Pneumatic fittings are key components used to connect pneumatic equipment, devices and air pipes. They can quickly and reliably connect and disconnect gas passages and play a role in transmitting gas.
In China’s manufacturing industry, pneumatic fittings are widely used in automobile manufacturing, mechanical processing, electronic manufacturing and other fields. The demand for pneumatic fittings is also diverse, requiring high sealing, fast connection and adaptability to high temperature and corrosive environments to meet the needs of diversified, efficient and stable production.
Common of pneumatic fitting types.
There are many pneumatic fitting types. This article mainly introduces the more common of pneumatic fitting types, and recommends related product models of related pneumatic fitting types for your reference.
1. Quick connecting pneumatic fittings:
Quick connecting pneumatic fittings are easy to operate, such as HANUMAN’s PPL, PX, and PKD. They use high-quality rubber sealing rings to ensure tightness and no air leakage. In industries such as automotive manufacturing and food processing, quick connecting pneumatic fittings can quickly connect to gas sources, improve work efficiency, and facilitate equipment movement and temporary connections.
2. Threaded pneumatic fittings:
Threaded pneumatic fittings have stable connection, strong sealing and high pressure resistance, such as HANUMAN’s SSB and SSOC, which are suitable for air pipes of various specifications. Stainless steel is durable and is often used in high-temperature and high-pressure steam and compressed air pipeline connections in automobile engine processing and food processing.
3. Straight-through pneumatic fittings:
Straight-through pneumatic fittings can change the direction of gas flow and save space, such as HANUMAN’s SSCF and SSGJ. Which have a compact design, good sealing, lightweight and durable aluminum alloy. They are often used in automobile engine compartments and food packaging machinery to optimize pipeline layout and connect different components.
4. Right angle pneumatic fittings:
The interfaces at both ends are at right angles, which can change the flow direction of the gas, save installation space, and make the pipeline layout more compact. Right angle fittings are used in situations where space is limited or the direction of the air pipe needs to be changed, such as automobile engine compartments and automated warehousing systems, to achieve a reasonable layout.
5. L-type pneumatic fittings:
Special angle L-type pneumatic fittings are suitable for specific space layouts, such as HANUMAN’s SSL. The sealing structure is leak-proof, and the material combines engineering plastics and metals for high strength. They are often used in automotive interior installation and food processing conveyor belts to adapt to narrow corners and special equipment structures.
6. Y-type pneumatic fittings:
Y-type pneumatic fittings, such as HANUMAN’s SSY, are shaped like a “Y” and have two input and one output interface, which can mix two gases or distribute one gas. They are suitable for welding, cutting and special pneumatic systems to adjust gas flow distribution.
How to optimize the production line of pneumatic fittings?
Some Chinese manufacturers have accumulated rich experience in the production and application of pneumatic fittings. Based on the characteristics of different pneumatic fitting types and actual needs,they continuously optimize the production line to improve production efficiency and product quality.
- Customized production: Provide customized solutions for pneumatic fitting types, such as pressure, flow, medium and other parameters of the pneumatic system. Select the appropriate pneumatic fitting types and specifications to ensure the stable operation of the system.
- Automated production: In order to improve production efficiency, Chinese manufacturers have introduced automated production equipment and technologies. Aiming at the production needs of pneumatic fitting types,rapid processing and assembly are achieved, which reduces production costs and improves market competitiveness.
- Quality inspection: Chinese manufacturers strictly control the quality of different pneumatic fittings types. Use advanced testing equipment and technology to conduct comprehensive testing on the sealing, strength, corrosion resistance, etc. of the joints to ensure that each fitting meets the quality standards.
- After-sales service: Chinese manufacturers pay attention to the construction of after-sales service system. Provide comprehensive technical support and maintenance services for different pneumatic fitting types o ensure that problems encountered by customers during use can be solved in a timely manner.
How to choose the pneumatic fitting sizes according to demand?
Factors to consider when selecting pneumatic fitting sizes.
When selecting the pneumatic fitting sizes, a number of factors need to be considered, including pipe diameter, operating pressure and environmental requirements.
1. Pipe diameter:
The diameter of the pipe is the primary factor in selecting the pneumatic fitting sizes. Measure the inner and outer diameters of the fittings to ensure the selected pneumatic fitting match the fittings. Use an inner caliper to measure the inner diameter of the pipe fitting and an outer caliper to measure the outer diameter of the pipe fitting. According to the diameter of the pipe fitting, find the corresponding model of pneumatic fitting.
2. Working pressure:
The operating pressure of the pneumatic fitting is also a key factor to consider when selecting the size. Generally speaking, larger pneumatic fittings can handle higher pressures.
When working in a high pressure environment, the pneumatic fitting sizes should be selected to withstand the corresponding pressure. For example, when the working pressure exceeds a certain range, a smaller connector (such as 1/8 inch) may not meet the needs, and a larger connector (such as 1/4 inch or larger) is more suitable.
Therefore, it is necessary to refer to the pressure rating chart of the pneumatic fitting and select the appropriate pneumatic fitting sizes according to the working pressure.
3. Environmental requirements:
Environmental requirements also affect the pneumatic fitting sizes. For example, in an environment with limited space, you may need to choose a smaller pneumatic fitting to save space.
When quick connection and disconnection are required, quick connecting pneumatic fittings are a good choice. They usually have a small size and convenient operation.
Consider environmental factors such as the operating temperature of the pneumatic fittings, the corrosiveness of the medium, and select the fitting sizes and material that can adapt to these environments.
How to measure the pneumatic fitting sizes?
Measure the pneumatic fitting sizes is a critical step to ensure the correct selection and installation of fittings. The following is a detailed method for measuring the pneumatic fitting sizes:
1. Inner diameter measurement:
• Use an inner diameter caliper to insert into the inside of the pneumatic fitting and ensure that the caliper fits perfectly against the inner wall of the fitting.
• Read the inner diameter value displayed on the caliper. This value is the diameter size of the internal space of the pneumatic fittings.
2. Outer diameter measurement:
• Put the outer diameter caliper on the outside of the pneumatic fitting, making sure that the caliper fits tightly against the outer housing of the fitting.
• Read the outer diameter value shown on the caliper, which indicates the diameter size of the air fitting housing.
3. Thread size measurement:
• For pneumatic fittings with threads, use a thread gauge to measure the thread size.
• Insert the gauge tip into the threaded area of the fitting, making sure the gauge fits snugly against the fitting threads.
• Read the values of thread diameter and pitch shown on the thread gauge.
4. Notes：
• Ensure that measurements are made with tools that are highly accurate and have an appropriate measuring range.
• Be careful during measurement to avoid damaging the fitting or causing errors.
• Keep the fitting surface clean to ensure accurate measurement results.
Pneumatic fitting size chart analysis.
The pneumatic fitting size chart is an indispensable and important tool in the design and maintenance of pneumatic systems. It provides detailed dimension information of various pneumatic fittings to help users and engineers quickly and accurately select the required fittings. The following is a detailed analysis of the pneumatic fitting size chart:
1. Basic composition of pneumatic fitting size chart:
Pneumatic fitting size chart typically include the following key information:
• Fitting model: Indicates the specific type and specification of the pneumatic fitting, such as SSB, SSC, PCF, PC, etc.
• Pipe size: usually refers to the outer diameter of the air pipe, measured in millimeters (mm), indicating the size of the air pipe that the pneumatic fitting can connect to.
• Thread size: Indicates the diameter of the threaded portion of a pneumatic fitting, usually expressed in inches or minutes (1 inch = 8 minutes), and is used to determine which equipment or pipe threads are compatible.
• Other parameters: may include additional information such as working pressure, material, seal type, etc. These parameters are also very important for selecting suitable pneumatic fittings.
2. Example of pneumatic fitting size chart:

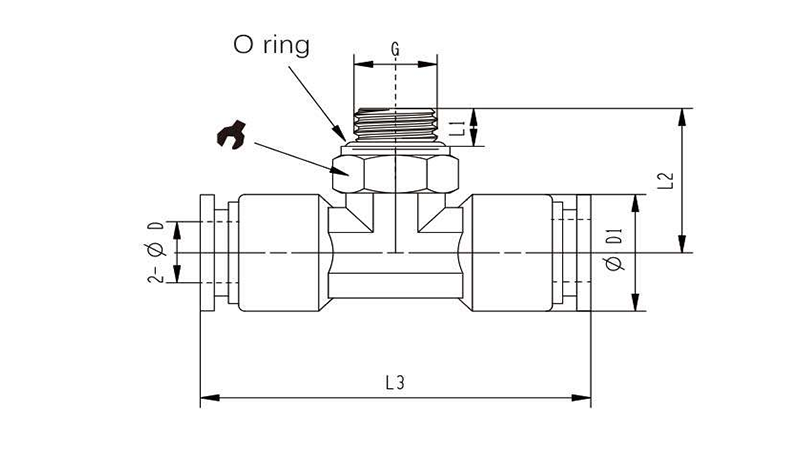

The following is an example of a pneumatic fitting size chart for one of HANUMAN’s models.
3. How to select the fitting according to the pneumatic fitting size chart？
• Determine the outer diameter of the air pipe: First, you need to determine the outer diameter of the air pipe to be connected, and then find the matching pipe size in the pneumatic fitting size chart.
• Select thread size: Select the appropriate thread size according to the thread interface of the connecting device. Make sure the thread size of the pneumatic fitting matches the thread interface of the equipment to ensure the tightness and stability of the connection.
4. Notes：
When choosing a pneumatic fitting, you also need to consider other parameters such as working pressure, material, sealing type, etc.
Pneumatic fitting size chart is critical to pneumatic system design. The sizes of different brands may vary, so please refer to the specific brand table when making a selection. The accuracy requirements must meet actual needs to avoid problems caused by size mismatch.
In conclusion, the pneumatic fitting size chart can help to quickly select the right fitting to ensure efficient operation of the system. However, you still need to choose according to actual needs. If you have any questions, please feel free to consult HANUMAN!
Demand trends for pneumatic fitting.
In the Chinese market, the demand for pneumatic fittings continues to grow, especially environmentally friendly and high-performance fittings. With the acceleration of industrial automation and the improvement of environmental awareness, companies are more inclined to adopt pneumatic fittings that can meet the requirements of energy conservation and emission reduction to reduce energy consumption and environmental pollution.
Chinese factories and manufacturers have demonstrated strong competitive advantages in the global market, thanks to a complete industrial system, abundant R&D resources and high-quality talent pool. These companies are highly dependent on high-quality pneumatic fittings to ensure the stability and efficiency of their production lines.
Therefore, pneumatic fitting manufacturers need to continuously improve product performance and quality to meet the urgent needs of Chinese companies for environmentally friendly and efficient products.
In the future, with the continuous advancement of technology and the continuous expansion of the market, the pneumatic fittings industry will usher in more development opportunities and challenges.
