When choosing a suitable automatic drain valve for an air compressor, it is important to consider multiple factors while clarifying key factors such as compressor type, drainage requirements, working pressure and temperature to ensure that the equipment needs are met and the system operates stably.
The following are the relevant factors to consider when choosing a suitable automatic drain valve:
Drainage capacity
1. Flow requirements
The first thing to consider is the air production and duty cycle of the air compressor. For small compressors used in household appliances or offices, the gas output is generally between tens of liters and hundreds of liters per minute. If the drainage flow of the drain valve is too low, the condensed water produced by the compressor cannot be discharged in time, causing water to accumulate in the system.
Therefor, in practical applications, it is necessary to ensure that the drainage flow rate of the drain valve can match or be slightly greater than the amount of condensed water produced when the compressor is working at full load. Generally speaking, the drainage flow specification of the drain valve should be around 1% – 5% of the maximum gas output of the compressor to ensure effective drainage.
2. Drainage speed
The drainage speed is also important. Air compressors will continuously produce condensed water during operation, especially in high humidity environments or when the compressor works continuously for a long time. The drainage speed of the drain valve must be fast enough to prevent condensed water from accumulating inside the drain valve and affecting the drainage effect.
Rapid drainage drain valves usually have a larger drain port and an optimized internal channel design, which enables condensed water to be discharged quickly under the action of gravity or air pressure. In some drain valves with inclined drainage channels, gravity can be used to accelerate drainage and improve drainage efficiency.
Working pressure range
1. Pressure resistance
Air compressor system usually work at a certain pressure and the automatic drain valve needs to be able to withstand this pressure. Air compressors of different models and specifications have different working pressures, generally between 0.7 – 1.3MPa.
The pressure resistance of the drain valve should be higher than the maximum working pressure of the compressor. It is recommended to select a drain valve with a pressure resistance of 1.5 – 2.0MPa. Ensure that the drain valve will not be damaged due to excessive pressure when the compressor pressure fluctuates or is abnormal.
2. Pressure adaptability
The drain valve also needs to adapt to the pressure changes during the operation of the compressor. When the compressor is started and stopped, the pressure in the system will fluctuate significantly. Therefore, the automatic drain valve needs to ensure that it works normally under such circumstances and does not malfunction or cause poor drainage.
Choosing a drain valve with pressure balance can automatically adjust the drainage status according to changes in system pressure to ensure effective drainage under different pressures.
Material quality
1. Valve body material
The valve body material directly affects the durability and corrosion resistance of the drain valve. For air compressor drain valves, the common valve body materials are stainless steel and copper alloy.
Drain valves made of stainless steel(e.g. 304 stainless steel) have good corrosion resistance, can resist possible chemical corrosion caused by moisture, oxygen in the air and compressor lubricating oil. Copper alloy(e.g. brass) drain valves also have good corrosion resistance and good thermal conductivity, which is conducive to the discharge of condensed water.
In environments with corrosive gases or high humidity, a stainless steel drain valve may be a better choice. And in special application scenarios where thermal conductivity is required, copper alloy drain valves can be advantageous.
2. Sealing material
The sealing material is critical to the tightness of the drain valve. Rubber and PTFE are commonly used sealing materials.
Rubber seals are low in cost, certain degree of elasticity and can provide a good initial sealing effect. However, rubber is prone to aging, deformation and leakage after long-term exposure to high temperatures, high pressure and chemicals(e.g. compressor lubricating oil).
PTFE sealing materials have excellent chemical corrosion resistance,high temperature resistance ,low friction coefficient and can maintain good sealing performance in harsh working environments. Especially in high temperature and high pressure air compressor system, PTFE sealed drain valves can better ensure the sealing of the system.
Valve type
1. Float type drain valve
The working principle of the float type drain valve is to use the buoyancy of the float to control the opening and closing the drain port. When the condensed water accumulates to a certain level, the float will rise to open the drain port for drainage. After drainage is completed, the float will drop to close the drain outlet.
The advantage of the float type drain valve is that the drainage is intuitive and reliable, and it can automatically drain according to the amount of condensed water. Suitable for air compression systems with large changes in condensate, such as small compressors working intermittently.
Of course, small air compressors are also used in some auto repair shops. Because the working hours are irregular and the amount of condensed water is not stable, the float type drain valve can better adapt to this situation and discharge the condensed water in time.

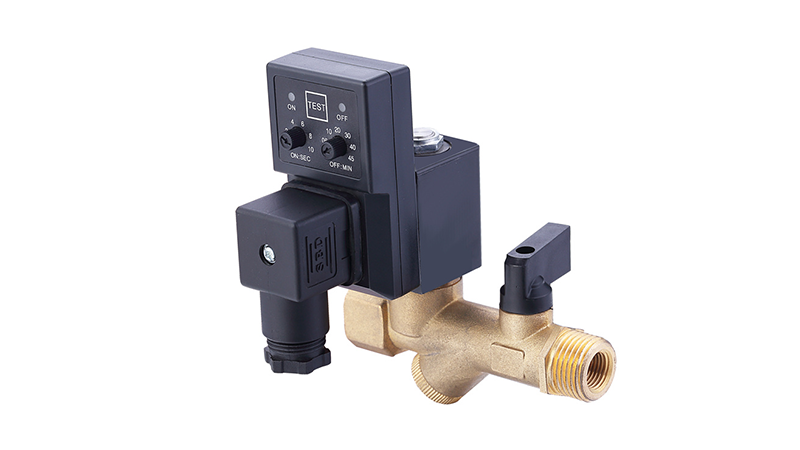

2. Electronic time drain valve
The electronic time drain valve valve controls the drainage by setting the drainage time interval. The electronic timed drain valve can accurately set the drainage time according to the working characteristics of the air compressor and the law of condensed water generation.
The advantage of the electronic timed drain valve is that the drainage is regular and accurate and is not affected by fluctuations in the amount of condensed water. For large, continuously working air compressor systems, electronic timed drain valves can ensure stable drainage of the system.
Large air compressors on industrial production lines work for long hours and produce relatively stable condensate. It is possible to effectively drain condensate by setting an appropriate drainage time interval, such as draining every 10-15 minutes. It can also meet the needs of remote monitoring and operation through the control system.
Installation and maintenance
1. Installation method
The automatic drain valve should be installed in a way that matches the drain port of the air compressor.
Common installation methods include threaded connection, flange connection, etc. For small air compressors, the threaded drain valve is easy to install, and you only need to screw the drain valve on the drain port. And for large, high-pressure air compressor systems, flanged drain valves provide a stronger, more reliable connection to prevent leakage.
At the same time, the installation position of the drain valve is also very important. It should be installed at the lowest point of the system to ensure that the condensed water can naturally flow to the drain valve for drainage.
2. Maintain requirements
Choosing a drain valve that is easy to maintain can reduce maintenance costs and downtime of your equipment.
During use, the drain valve may become clogged or the seal may be damaged. Some drain valves have a detachable design, which is convenient for cleaning internal impurities and replacing seals. For example, a drain valve with a removable filter can regularly clean the dirt on the filter to prevent clogging. Moreover, the seals are easy to replace. You only need to remove a few screws to replace the new seals, which can greatly shorten the maintenance time and improve the availability of the equipment.
In short, when choosing an air compressor drain valve, it is necessary to comprehensively consider multiple aspects such as drainage capacity, working pressure range, material quality, valve type, and installation and maintenance convenience to ensure that the drain valve can meet equipment requirements and maintain stable system operation.
