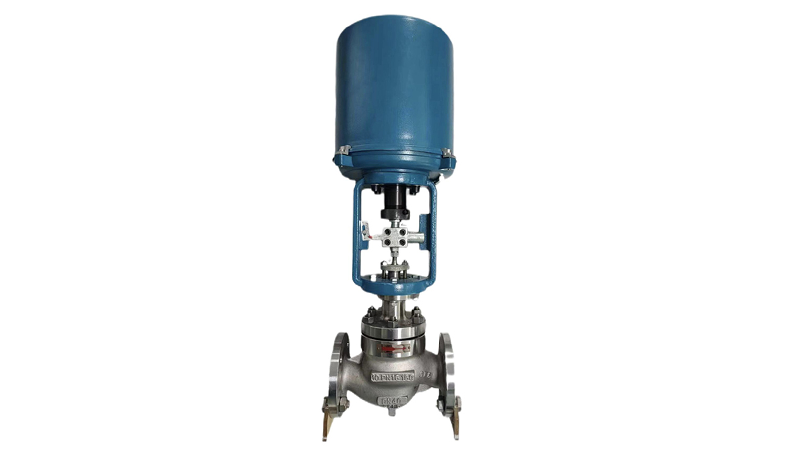

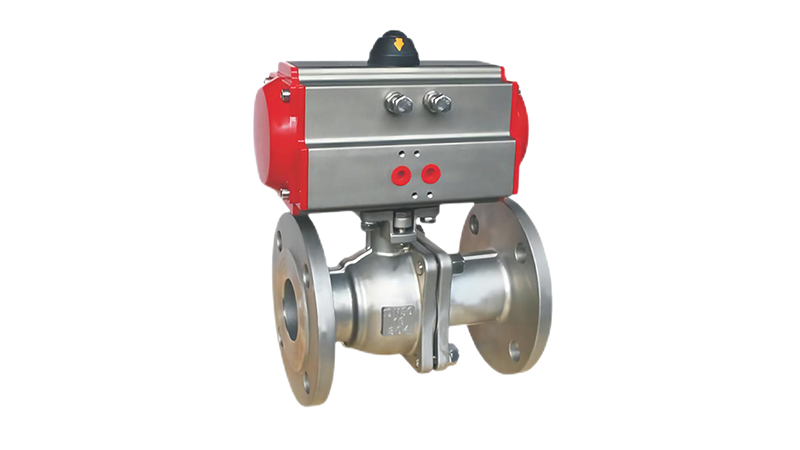

Pneumatic control valves are precision “switch” in industrial automation. Correct debugging is related to the efficiency of the system. Mastering the correct debugging methods and steps of pneumatic control valves can ensure their normal operation and achieve precise control of the medium.
The following are the key debugging steps and precautions for pneumatic control valves：
I. Inspection and preparation
check the gas source:
- Ensure that the air source pressure and quality meet the requirements for the operation of the pneumatic actuator. This is the basis for ensuring the normal operation of the pneumatic control valve.
- Check whether the gas source pipeline is unobstructed and has no leakage.
Check the valve and actuator:
- Observe whether the valve and actuator are intact and free from corrosion, deformation and other phenomena.
- Check whether the valve sealing surface is flat and free of scratches, wear, etc.
II. Basic debugging
Zero adjustment:
- Connect the air source to the actuator of the pneumatic control valve.
- Adjust the zero knob of the positioner to move the the valve core to the closed position.
- Check whether the valve core is completely closed. If necessary, repeat the above steps to adjust it.
Full adjust
- Connect to the gas source in the same time.
- Adjust the zero knob of the positioner to move the valve core to the closed position.
- Check whether the valve core is fully open and make necessary adjustments.
III. Performance debugging
Sensitivity adjustment:
- Input a small control signal to the positioner and observe the movement of the valve core.
- Adjust the sensitivity knob of the positioner to make the valve core respond more sensitively to the control signal.
Return adjustment:
- Input a control signal to record the position of the valve core in the forward and reverse strokes.
- Calculate the difference between the valve core in the forward and reverse strokes, and adjust the hysteresis knob of the positioner to reduce the difference.
Lag adjustment:
- Input a step signal and observe the output curve of the valve core.
- Calculate the lag time and adjust the lag knob of the positioner to reduce the lag time.
IV. System testing
Test control systems:
- Test the entire control system to ensure that it can correctly respond to various control signals and achieve the expected control effect.
- Check whether the valve opening is accurate under different control signals and whether there is any abnormal fluctuation or jamming phenomenon.
Check the tightness:
During the commissioning process, the tightness of the valve needs to be checked to ensure that the valve can close correctly and respond quickly when needed.
V. Matters need attention
Read the instructions:
Before debugging, you should carefully read the instruction manual of the pneumatic control valve to understand the specific debugging steps and precautions.
Use special tools:
During debugging, you should use special tools to avoid damage to the equipment or personal injury caused by using inappropriate tools.
Safe operation:
During the debugging process, attention should be paid to safe operation to avoid accidents. If dangerous operations such as high-altitude operations or contact with high-pressure gas are required, appropriate safety protection measures should be taken.
Record debugging date:
During the debugging process, various debugging date and observation results should be recorded in detail for subsequent analysis and optimization.
Regular maintenance:
After the commissioning is completed, the pneumatic control valve should be maintained and inspected regularly to ensure its long-term stable operation.
Through the above steps and precautions, we hope that you can have an correct understanding of how to properly debug the pneumatic control valve. Strictly following the steps and precautions can ensure the correct commissioning and stable operation of the pneumatic control valve. But, in actual operation, it is necessary to adjust and improve according to specific process requirements and equipment characteristics.
