Pneumatic Cylinder Diagram and Structure
The pneumatic cylinder diagram is an indispensable resource for engineers, technicians, and enthusiasts of pneumatic systems alike. It serves as a fundamental tool for comprehending the design and operational principles of these systems. These diagrams encapsulate crucial information pertaining to the design, working mechanisms, various types, and applications of pneumatic cylinders. They meticulously display port locations and valve symbols, offering detailed insights into valve functionality and the directional flow of compressed air.
Internal Structure of a Pneumatic Cylinder
A typical pneumatic cylinder comprises the following primary components:
- Piston: The piston is the central and crucial component of the pneumatic cylinder, acting as the primary source of power for either pushing objects or being displaced itself. Situated within the cylinder body, the piston undergoes reciprocating motion under the influence of applied air pressure. Seals are critical for maintaining pressure integrity and ensuring efficient power transmission to the piston. The design and material of the piston, often aluminum alloy, are crucial for its durability and performance under repeated pressure cycles.
- Cylinder Body: Serving as the outer enclosure of the pneumatic cylinder, the cylinder body is typically manufactured from high-strength, corrosion-resistant materials such as aluminum alloy. This elongated cylindrical structure provides the housing within which the piston and piston rod move. The internal surface of the cylinder body is precisely machined to ensure a tight seal with the piston and facilitate smooth, low-friction movement. The overall dimensions and material thickness of the cylinder body are determined by the pressure it needs to withstand and the forces it needs to transmit.
- Seal: Seals are essential components for ensuring that the pressurized air within the pneumatic cylinder does not leak. These seals are commonly installed between the piston and the cylinder bore, as well as at the interface between the end covers and the cylinder body. Typically crafted from materials like rubber, these seals possess excellent elasticity and sealing properties to maintain the required pressure differential and prevent energy loss. Different types of seals, such as O-rings, U-cups, and wiper seals, are used in various locations to perform specific sealing and protection functions.
- Guide: The guide mechanism is implemented to ensure the accurate and consistent trajectory of the piston’s movement within the cylinder. The guide can take the form of a guide rail or a guide sleeve, among other configurations, and is installed within the cylinder body, connected to the piston. These guides are critical in preventing the piston from deviating from its intended path during operation, especially when subjected to lateral loads. Proper guiding minimizes wear and tear on the piston and cylinder, extending the lifespan of the pneumatic cylinder and maintaining operational accuracy.
further details the components of single-acting and double-acting pneumatic cylinders, including the single port and spring mechanism in single-acting cylinders, and rod seals, end caps, optional cushioning pads, two ports, various sealing elements, wear bands, and tie rods in double-acting cylinders.
Coordinated Operation of Pneumatic Cylinder Components
The propulsion and reset functionalities of a pneumatic cylinder are achieved through the coordinated interaction of its various components, as follows:
1. Propulsion Function
When a compressed air source injects pressurized air into the cylinder through the designated air inlet, this air pressure acts upon one face of the piston. The resulting force propels the piston and the attached piston rod outwards along the cylinder’s axis, thus achieving the propulsion action. Simultaneously, the seals play a critical role in preventing the pressurized air from escaping outside the cylinder body, thereby ensuring the efficiency of the pneumatic cylinder’s propulsive force. The bore size of the cylinder and the applied air pressure dictate the magnitude of the thrust generated.
2. Reset Function
For double-acting pneumatic cylinders, the reset function is initiated when the control valve redirects the compressed air supply to the opposite air inlet. This causes the pressurized air to act on the other face of the piston, subjecting it to a force in the opposing direction and causing it to move inwards along the cylinder’s axis, thus achieving the reset action. Similar to the propulsion phase, the seals are instrumental in maintaining pressure and ensuring efficient movement during the reset process. In contrast, single-acting pneumatic cylinders rely on a spring mechanism or another external force to return the piston to its initial position once the air pressure is released from the single inlet port. The spring force must be carefully selected to ensure reliable return without unduly increasing the required air pressure for propulsion.
Different Types of Pneumatic Cylinders and Their Applications
A diverse range of pneumatic cylinder types exists, each tailored to specific application requirements. primarily categorizes them into single-acting and double-acting pneumatic cylinders. The following sections will elaborate on these common types, their structural designs as depicted in their respective diagrams, and their typical applications. The primary distinction between the single acting pneumatic cylinder diagram and the double acting pneumatic cylinder diagram lies in the number of air ports and the representation of the spring in the former.

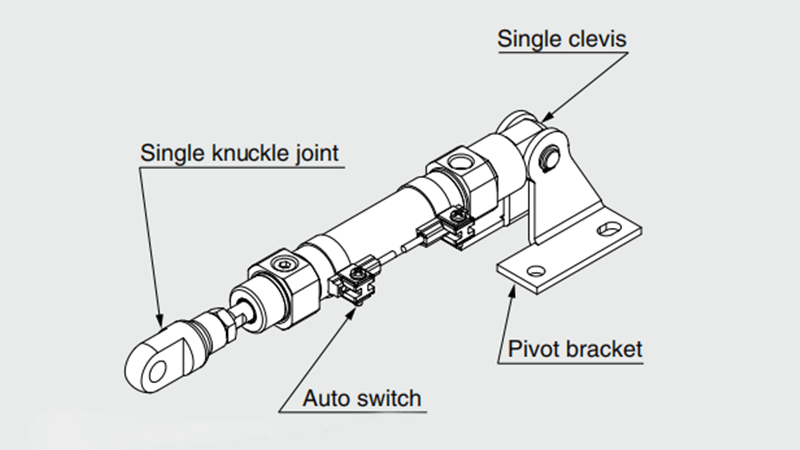

Single Acting Pneumatic Cylinder Diagram and Structure
A single acting pneumatic cylinder typically consists of a cylinder barrel, a piston, a piston rod, a spring, and an end cap. The cylinder barrel is cylindrical, housing the piston, which is connected to the piston rod that extends from one end of the cylinder. The spring is located on one side of the piston, usually in the rodless cavity. a single-acting pneumatic cylinder is characterized by a single air port through which compressed air enters to drive the piston in one direction (typically extension). The return movement is generally facilitated by a mechanical spring, gravity, a counterweight, or another external spring. also identifies two main design types for single-acting cylinders: “normally retracted” (air pressure extends the rod) and “normally extended” (air pressure retracts the rod), also referred to as push and pull designs, respectively. The opposite side of the piston is typically vented to the atmosphere.
Working Method:
Single-acting pneumatic cylinders are powered by air pressure acting in only one direction. When compressed air is introduced into the rod chamber via the single air inlet, the air pressure exerts a force on the piston, pushing it towards the rodless chamber, thus compressing the spring and extending the piston rod. Upon cessation of the air intake, the elastic force of the compressed spring propels the piston back to its original retracted position, causing the piston rod to retract. Single-acting cylinders are frequently employed in applications where the required stroke is short and the return force demand is not substantial, such as in simple material ejection mechanisms, as well as in clamping and stamping applications where the return action is not critical. They are also suitable for light-duty loads and short-stroke applications. A significant advantage of single-acting cylinders highlighted in is their ability to automatically return to the original position in the event of a power outage or pressure loss. However, a limitation is the potential inconsistency in output force throughout the stroke due to the counteracting force of the spring, and the stroke length is constrained by the space required for spring compression and the available spring length. also notes that position detection in single-acting cylinders can be achieved using magnets installed on the piston and sensors (Hall effect sensors, reed switches) on the cylinder body, and small single-acting cylinders often utilize polyurethane elastomer cushioning pads for buffering. The formula for force calculation in a single-acting cylinder, considering the spring return force (f), is given as F = (P x A) – f, where P is the pressure and A is the effective piston area. Various mounting options are available, including foot mounting, rear mounting, rear pivot mounting, and trunnion mounting.

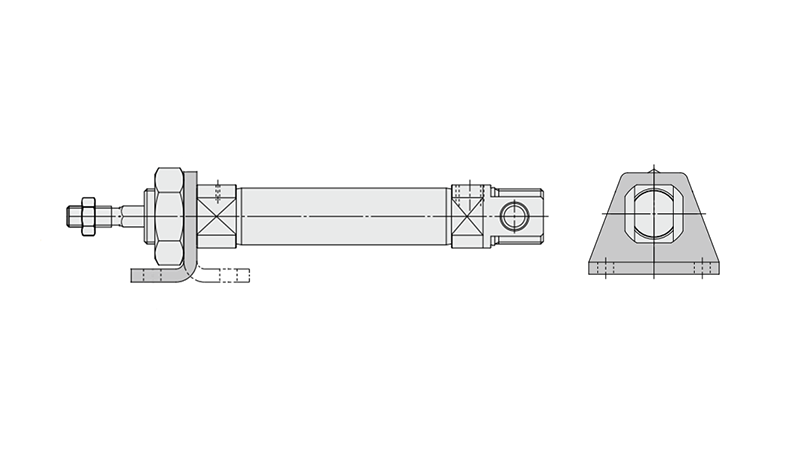

Double Acting Pneumatic Cylinder Diagram and Structure
The structure of a double acting pneumatic cylinder includes a cylinder barrel, a piston, a piston rod, and front and rear end covers. Air inlets are strategically positioned at both ends of the cylinder, the piston resides in the middle of the cylinder bore, and the piston rod is connected to the piston, extending through the front end cover. double-acting cylinders also incorporate rod seals, optional cushioning pads, two air ports, various sealing elements, wear bands, and tie rods. The presence of two air ports, one at each end, enables the use of compressed air to drive the piston in both directions, facilitating bidirectional motion.
Working Method:
Double-acting pneumatic cylinders are powered by air pressure applied alternately in both directions. When compressed air is introduced through the air inlet at one end, it exerts pressure on the piston, causing it to move towards the opposite end, which in turn extends or retracts the piston rod. For instance, if air enters through the front intake port, the piston moves rearward, and the piston rod retracts. Conversely, when air is supplied through the rear air inlet, the piston moves forward, and the piston rod extends. This type of cylinder finds widespread application in automation equipment that necessitates precise control of reciprocating motion, such as the articulation of robotic arms, as well as in a multitude of other industrial processes including assembly, packaging, material handling, conveyor systems, hydraulic presses, lifting, clamping, pulling, and pushing devices. Their applications extend to construction and earthmoving equipment, agricultural machinery, aerospace (aircraft landing gear, control surfaces), automotive manufacturing (material transfer, welding, positioning), material processing and handling (lifting, sorting, conveying), and medical equipment (diagnostic instruments, operating tables, hospital beds). Double-acting cylinders offer the capability to push and pull loads, convert fluid energy into mechanical linear motion, achieve high-precision positioning, provide bidirectional thrust and pulling forces, integrate seamlessly with control systems for precise regulation of air pressure and flow to control movement, exhibit rapid dynamic response to pressure changes, and allow for controlled adjustment of movement speed and force. The pneumatic control system ensures the regulated supply of compressed air to the relevant chambers, and solenoid valves control the airflow into and out of the cylinder, thereby governing piston movement. Pressure regulators and pressure switches can be incorporated to ensure system safety. Cushioning mechanisms can be integrated to mitigate piston impact at the end of the stroke, reducing wear and tear. They are particularly suitable for applications demanding precise positioning, controlled speed, and consistent force.

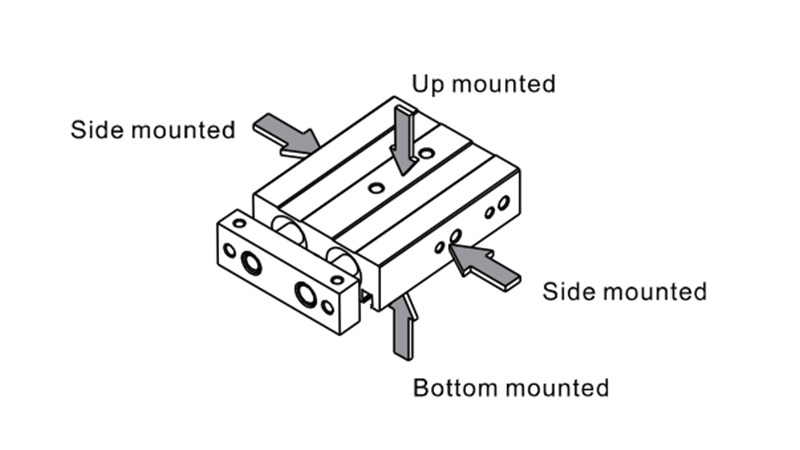

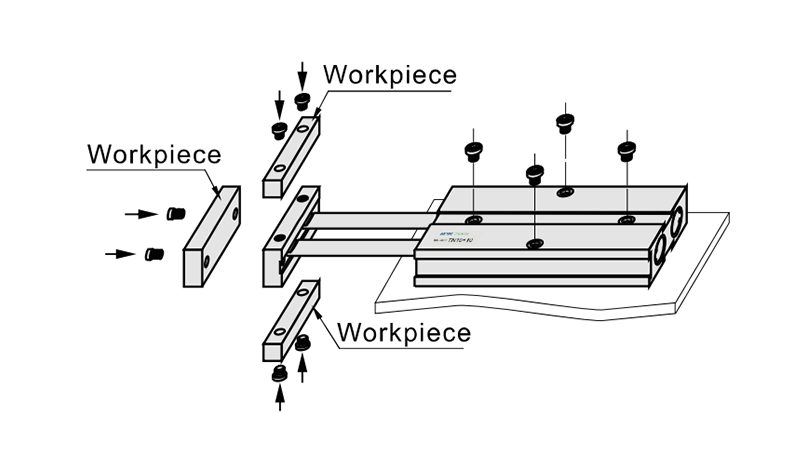

Guide Pneumatic Cylinder
As mentioned in the first source, guided pneumatic cylinders incorporate a guide mechanism in addition to the standard cylinder components (cylinder, piston, and piston rod). These include a guide rod arranged parallel to the piston rod and a matching guide sleeve. Their working method is similar to double-acting cylinders, with reciprocating motion controlled by air inlets at both ends. The guide rod and sleeve ensure high linear motion accuracy of the piston rod, even when subjected to significant lateral forces. They are commonly used in equipment requiring high-precision linear motion, such as high-precision material handling or positioning devices in processing equipment.
Other Types of Pneumatic Cylinders
The first source also lists various other types of pneumatic cylinders, including:
Mini Cylinders
Slide Table Cylinders
Air Grippers
Rotary Cylinders
These specialized cylinders are designed for specific applications and offer unique features beyond the basic linear motion provided by single and double-acting cylinders.
Pneumatic Cylinder Model Introduction
The first source provides a code system for identifying different features of pneumatic cylinders:
- A: Indicates pneumatic cylinder.
- B: Indicates double acting cylinder.
- C: Indicates a cylinder with a magnetic switch.
- D: Indicates a cylinder with brake.
- E: Indicates a cylinder with an extended rod.
- F: Indicates a cylinder with flanged connections.
- G: Indicates a cylinder with gear rack.
- H: Indicates a cylinder with a hydraulic lock.
- J: Indicates a cylinder with a joint and a valve.
- K: Indicates a cylinder with a hole.
- L: Indicates long stroke cylinder.
- M: Indicates a cylinder with a motor.
- P: Indicates a cylinder with a piston rod seal.
- R: Indicates a rotary cylinder.
- S: Indicates a cylinder with spring return.
- T: Indicates a cylinder with a torque limiter.
- U: Indicates a cylinder with a vacuum generator.
- V: Indicates a cylinder with a valve.
- W: Indicates a cylinder with wireless control.
Understanding these designations is crucial for selecting the appropriate pneumatic cylinder for a given application.
Factors to Consider When Choosing a Pneumatic Cylinder
Selecting the appropriate pneumatic cylinder necessitates a comprehensive consideration of several critical factors. According to the first source, cylinder stroke, cylinder diameter, pressure demand, and installation space are paramount. further expands on these and introduces other essential design and selection considerations applicable to both single and double-acting types. Comprehending the pneumatic cylinder diagram aids in visualizing these factors in relation to the cylinder’s structure and intended operation.
1. Cylinder Stroke
The cylinder stroke refers to the distance the piston must travel within the workflow, as discernible from the pneumatic cylinder diagram. For instance, in an automated assembly line where a pneumatic cylinder is tasked with pushing parts from a storage unit to the assembly station, the linear distance the parts need to move constitutes the fundamental travel requirement. It is prudent to add a safety margin of 10% to 20% to this calculated stroke length. The equipment layout must ensure that the chosen pneumatic cylinder has sufficient space for full extension without any obstructions hindering the piston’s movement. Furthermore, the direction of the stroke should align with the direction of material or component movement throughout the production process to guarantee seamless operation. emphasizes that the stroke length influences the working range and overall dimensions of the cylinder.
2. Cylinder Diameter
Analyzing the size and nature of the load is crucial, often informed by the pneumatic cylinder diagram. In scenarios involving the lifting of heavy objects or overcoming substantial frictional forces, such as in the transport of automobile engine cylinders, the appropriate cylinder diameter can be determined using mechanical formulas based on the load weight and the required thrust. The relationship between force, pressure, and area (Force = Pressure x Area) dictates that a larger cylinder diameter (and thus a larger piston area) will generate a greater force at the same applied pressure. The equipment layout must account for the physical dimensions of the chosen cylinder diameter. Pneumatic cylinders with larger diameters may necessitate more robust mounting supports, and adequate spacing between the cylinder and surrounding equipment is essential to prevent collisions during operation. also notes that the cylinder diameter influences the output force and air consumption, requiring a balance between the required force and the available air source.
3. Pressure Demand
Understanding the pressure supply of the entire pneumatic system, as often depicted in system diagrams that include the pneumatic cylinder diagram, is essential. If the system provides a pressure range of 0.6 to 0.8 MPa, and the intended workload can operate effectively under a pressure of 0.5 MPa, then a pneumatic cylinder capable of stable operation within this pressure range should be selected. For tasks with stringent pressure stability requirements, such as the fine assembly of electronic chips, pressure stability can be ensured through the installation of pressure regulating valves and other supplementary measures. The layout should position the pneumatic cylinder in a location where the pressure supply is consistent and pipe connections are straightforward. highlights that control systems can regulate air pressure and flow to achieve precise motion control in double-acting cylinders, and pressure regulators and switches enhance system safety.
4. Installation Space
Installation space represents a significant constraint in equipment design and layout. Careful observation of the available space in relation to the pneumatic cylinder diagram is necessary. In confined or irregularly shaped spaces, such as within a compact equipment control cabinet, opting for a compact pneumatic cylinder with suitable dimensions is preferable. The installation method should be determined based on the characteristics of the available space. For flat mounting surfaces, flange installation may be suitable. In narrow and elongated spaces, clevis or trunnion mounting might be considered to ensure stable installation of the pneumatic cylinder without impeding the normal operation of other components, thereby optimizing the overall equipment layout. lists various mounting options, including foot, tail, rear pivot, and trunnion mounting, emphasizing the need to choose a compatible option based on requirements.
Additional Considerations from
- Speed: The speed at which the piston travels within the cylinder, influenced by airflow rate, port size, and load. The required speed should be considered, and a cylinder with appropriate airflow capacity selected.
- Gas Compressibility: Affects responsiveness and accuracy, requiring consideration during design.
- Failure Safety Mechanism: Integration of safety features like spring return or defined safe positions in safety-critical applications.
- ISO Standards: Selecting cylinders compliant with ISO standards ensures interchangeability and compatibility with other components.
- Working Environment: Evaluation of temperature, humidity, corrosive substances, etc., to choose cylinders with appropriate materials and seals.
- Load Type: Assessment of static, dynamic, and lateral loads to select cylinders with suitable bearings and guiding systems.
- Durability: Consideration of the expected lifespan and duty cycle.
Competitiveness and Advantages of Pneumatic Cylinders in the Chinese Market
Fueled by domestic advancements, China has demonstrated robust competitiveness and notable advantages in the pneumatic cylinder industry. Particularly in the realms of technological innovation and cost control, Chinese pneumatic cylinder manufacturers have exhibited considerable strength.
Regarding technological innovation, Chinese manufacturers are actively investing in research and development. This includes continuous improvement of traditional pneumatic cylinder designs and technologies, such as optimizing the mating structure between the piston and the cylinder to enhance operational stability and accuracy. Furthermore, there is a proactive adoption of new technologies, such as the integration of sensor technology into pneumatic cylinders to enable real-time monitoring and feedback of operational status. Leveraging China’s abundant scientific research resources and talent pool, collaborations with universities and research institutions are fostering accelerated technological iteration and a continuous improvement in product performance. also highlights the trend of integrating smart sensors for real-time monitoring of position, speed, and pressure, enabling advanced control and predictive maintenance.
In terms of cost control, China benefits from a comprehensive industrial chain. The supply of raw materials is ample, and procurement costs are competitive, ranging from metal raw materials to sealing rubber, all obtainable efficiently and at reasonable prices. Simultaneously, the economies of scale are significant, with large production volumes reducing per-unit production costs, thereby enhancing price competitiveness in the international market. also mentions the application of lightweight materials like aluminum and engineered plastics to reduce overall system weight and improve efficiency and power.
HANUMAN possesses a deep understanding of the diverse needs of global customers. To cater to these customized requirements, HANUMAN has established comprehensive customer communication channels. Whether through online demand collection or an experienced offline professional sales team, they can accurately grasp customers’ specific needs regarding pneumatic cylinder size, pressure, stroke, and other critical parameters.
HANUMAN ensures both quality and efficiency through highly automated factory production processes. The incorporation of advanced automated production lines allows robots to precisely execute tasks such as welding and assembly, minimizing human errors. Automated testing systems monitor product quality in real-time, guaranteeing that every customized pneumatic cylinder meets stringent standards. The automation of production processes has also significantly improved production efficiency, shortened delivery cycles, better accommodated the needs of global customers, and positioned HANUMAN favorably in the global market competition.
Latest Trends in Pneumatic Cylinders
outlines several current trends in pneumatic cylinder technology:
- Application of Smart Sensors: For real-time monitoring of position, speed, and pressure, facilitating advanced control and predictive maintenance.
- New Valve Technologies and Cylinder Designs: Aimed at improving energy efficiency and reducing air consumption and leakage.
- Use of Lightweight Materials: Such as aluminum and engineered plastics, to decrease overall system weight and enhance efficiency and power.
- Integration of IoT Technology: Enabling remote monitoring, control, and predictive maintenance capabilities.
These trends indicate a move towards more intelligent, efficient, and lighter pneumatic cylinder systems.
In conclusion, both single-acting and double-acting pneumatic cylinders are vital and versatile components in a wide array of industrial applications. A thorough understanding of the pneumatic cylinder diagram for each type is instrumental in comprehending their operation and applications. By carefully considering the structural analysis and the various factors influencing their selection, Chinese manufacturers can effectively optimize their factory productivity. The continued innovation and cost-effectiveness of pneumatic cylinders from Chinese manufacturers position them as key players in the global automation landscape.
Welcome to consult HANUMAN for more information about pneumatic cylinders!
