HANUMAN can offer you with limit switch box and limit switch box valve position indicator, such as the APL-210N, APL-310N, and APL-410N-EX, with optional connection port sizes of G1/2” and G3/4”.
Specifications
|
Model |
APL-201N |
|
Switch type |
Mechanical |
|
Switch class |
250VAC 3A, 125V 5A, 250VDC 0.2A, 125V 0.4A, 30V 4A |
|
Protection class |
IP65 |
|
Ambient temperature |
-25 to 85 ℃ |
|
Port size |
G1/2” |
|
Wiring terminal |
8 |
|
Position indicator |
0 to 90 ° |
|
Potentiometer |
1 kΩ |
|
Current feedback |
4 to 20 mA |

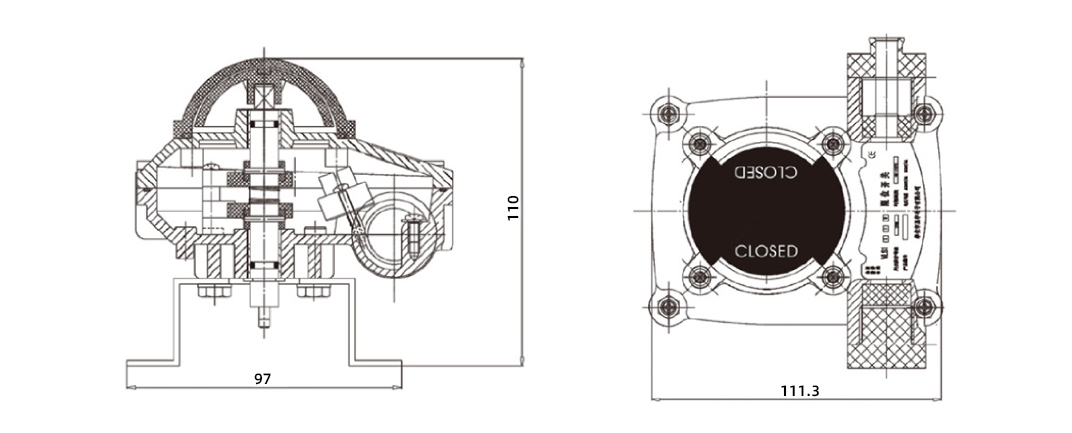

Overall Dimension(mm)

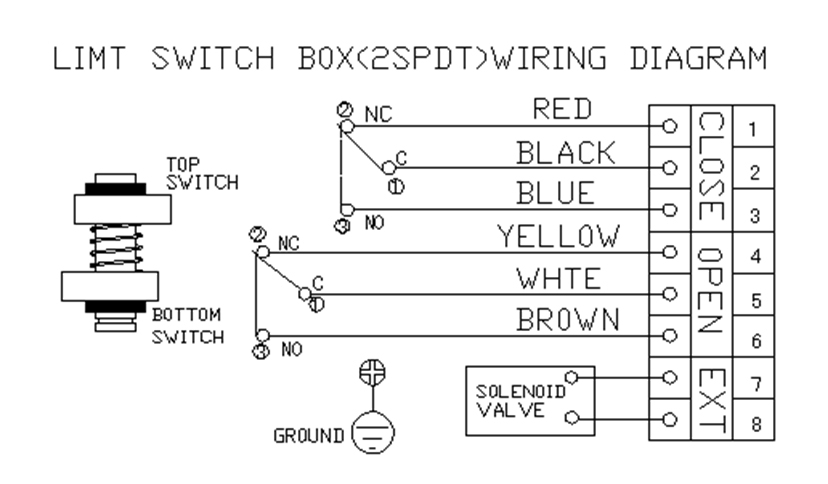

Wiring diagram

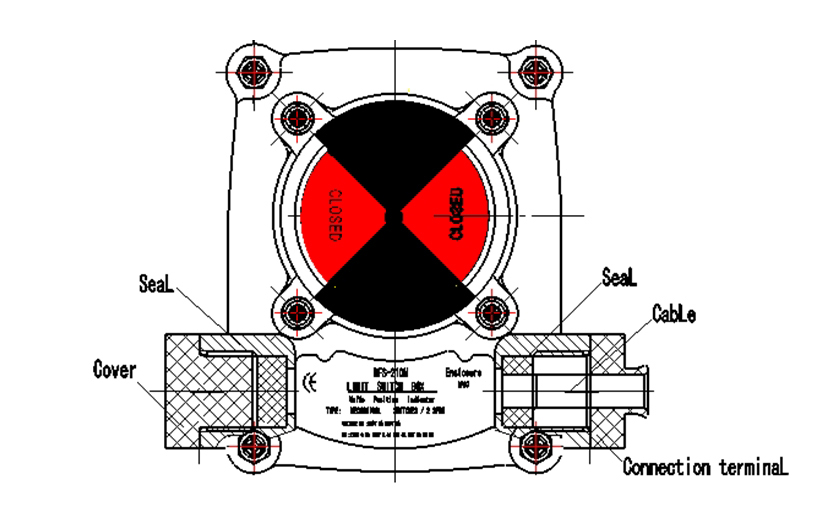

It is designed with standard cable inlet, G1/2 and G3/4 port size, and 8 terminal blocks. Usually it can be used for the connection of internal switch and solenoid valve. The mounting position is shown in the following diagram.
Installation note
I. Regulate valve to the CLOSED position, and adjust the red cam to let the CLOSED switch output signal.
II. Regulate valve to the OPEN position, and adjust the yellow cam to let the OPEN switch output signal.
III. Let the valve work for several times to make sure that the signal switch is available.
