HANUMAN Services
HANUMAN is a professional solenoid valve supplier and our business scope covers pressure switches, relief valves, 2-way valves, 3-way valves, 5-way valves, explosion proof valves, hand valves, and mechanical valves, with complete voltage ranges, thread types, port sizes, and pressure ranges.
Specifications
|

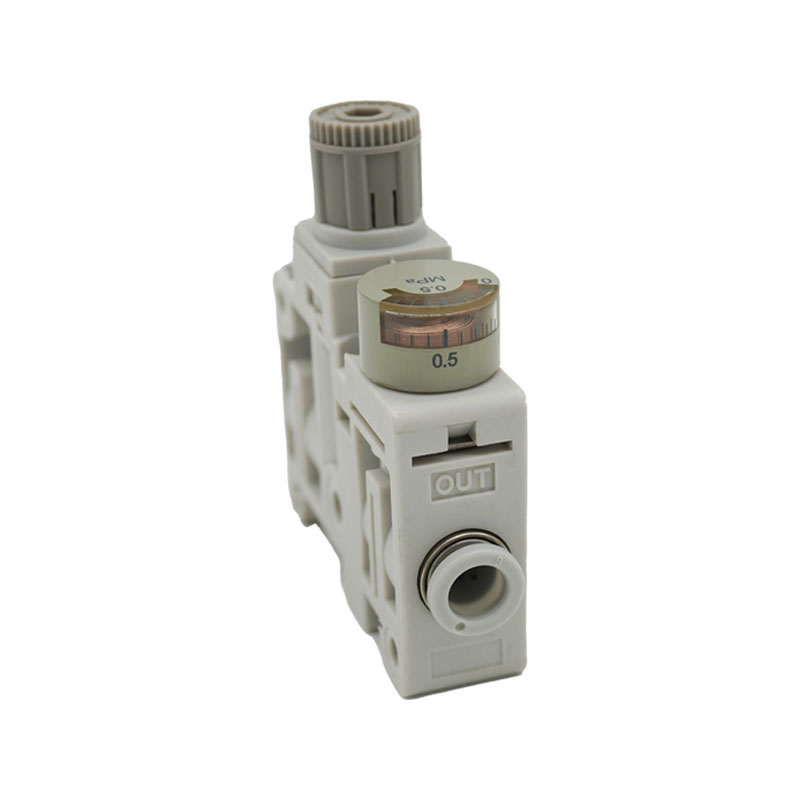

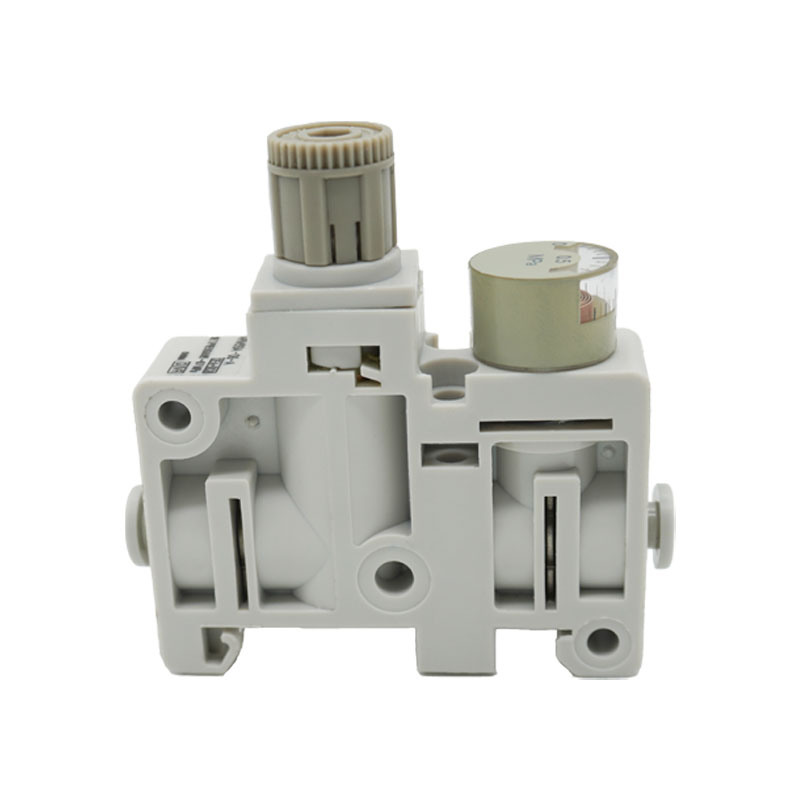

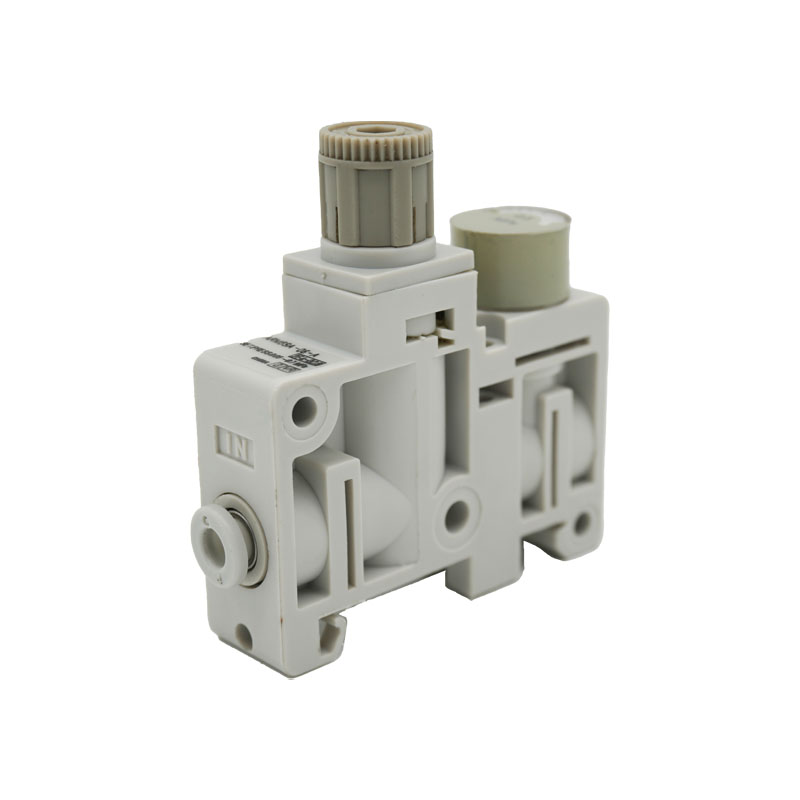

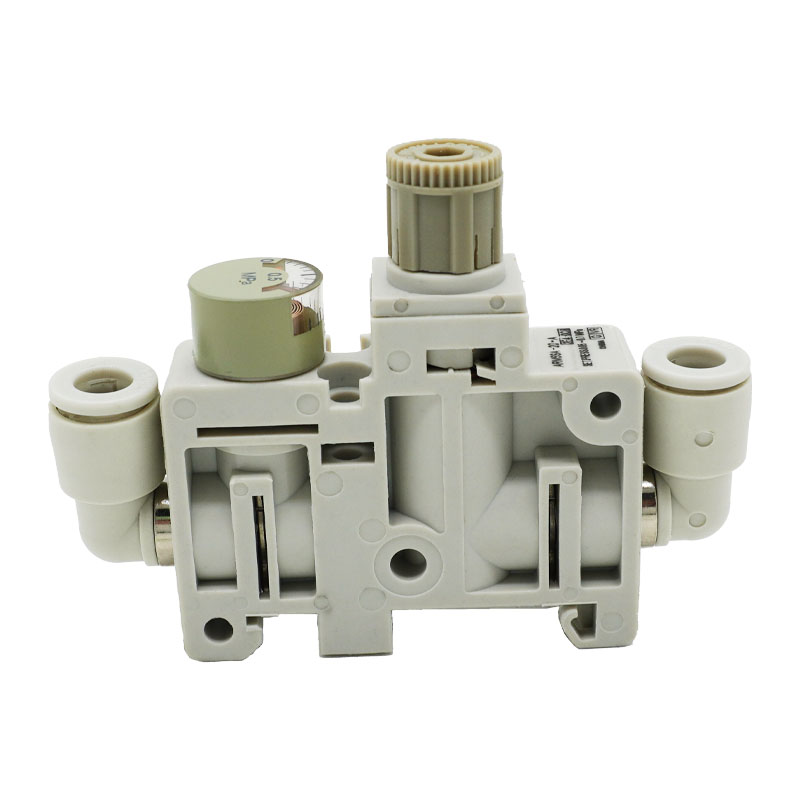

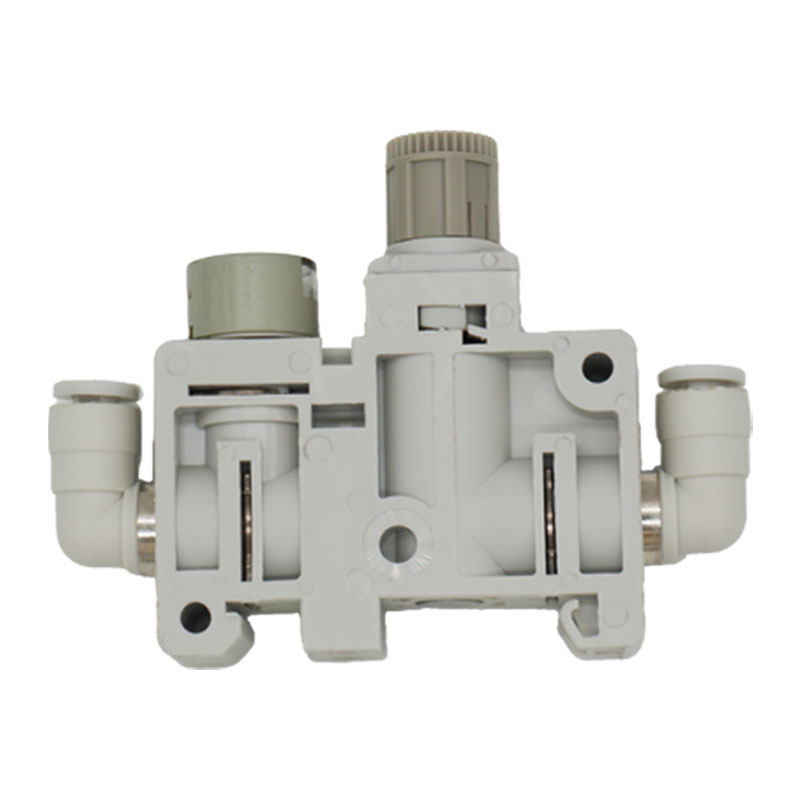

Model |
ARM5S |
|
|
Action |
Directly operated type |
|
|
Working principle |
Piston type |
|
|
Relief mechanism |
Standard |
Relieving type |
|
Semi-standard |
Non-relieving type |
|
|
Backflow function |
Within (Unbalanced type) |
|
|
IN side tubing O.D. |
Ø4, Ø6, Ø5/32”, Ø1/4” |
|
|
OUT side tubing O.D |
Ø4, Ø6, Ø5/32”, Ø1/4” |
|
|
Proof pressure |
1.5 MPa |
|
|
Max. operating pressure |
1 MPa |
|
|
Set pressure range |
Standard |
0.05 to 0.7 MPa |
|
Semi-standard |
0.05 to 0.35 MPa (Low pressure type） |
|
|
Fluid |
Air |
|
|
Ambient and fluid temperature |
+5 to +60 ℃ |
|
|
Weight (At ARM5SA-08-A) |
33 g |
|
