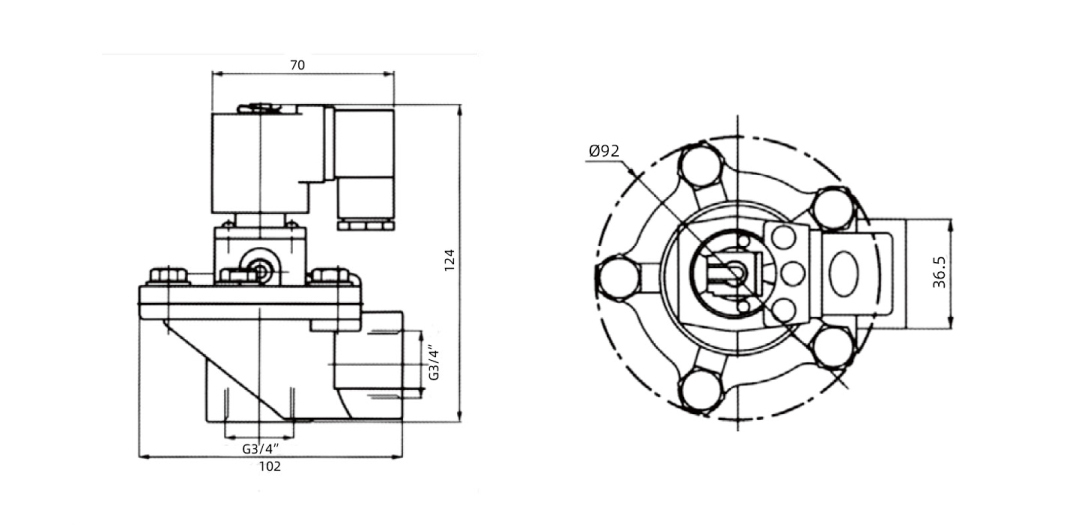

Right-angle type of pulse solenoid valve is a kind of compressed air switch in the dust removal blasting system of pulse bag house dust collector. The included angle of outlet and inlet ports is 90 degree. Normally it is controlled by the signal sent from pulse jet controller to blow and deash in bag house and then lets the pressure of dust collector keep in the set range, and further to ensure its working power and efficiency.
It is used as power source of dust collector system with good blowing effect.
It is applied with advanced techniques and key components are produced by imported materials.
Valve body is treated with shot blasting, with good anti corrosion performance.
It owns good mechanical performance and service life is more than one million cycles.
Baghouse Pulse Valves are critical components in industrial dust collection systems, providing the compressed air pulses that clean filter bags and maintain system efficiency. These specialized valves are engineered to deliver high-pressure bursts of air at precise intervals, ensuring consistent filtration performance. At GXR, we manufacture Baghouse Pulse Valves that meet the demanding requirements of modern industrial applications.
Key Features of Our Baghouse Pulse Valves
High Flow Capacity: Delivers powerful air pulses for effective filter cleaning
Robust Diaphragm Design: Ensures long service life under continuous operation
Fast Response Time: Quick opening and closing for efficient pulse delivery
Energy Efficient: Optimized design reduces compressed air consumption
Versatile Mounting: Multiple connection options for easy installation
Applications of Baghouse Pulse Valves
Our Baghouse Pulse Valves are essential for various industrial dust collection systems:
Cement and concrete production facilities
Woodworking and furniture manufacturing
Metal processing and foundries
Pharmaceutical and food processing plants
Power generation and incineration plants
Why GXR Baghouse Pulse Valves Stand Out
As part of XINGYU GROUP with decades of industrial experience, our Baghouse Pulse Valves offer distinct advantages:
Superior Materials: Constructed with high-grade metals and reinforced diaphragms
Precision Engineering: Consistent performance across millions of cycles
Custom Solutions: Available in various sizes and configurations
Global Availability: Supported by our international distribution network
Technical Specifications
Our Baghouse Pulse Valves are available with these specifications:
Size Range: 1" to 3" nominal diameters
Pressure Rating: 0.3 MPa to 0.7 MPa operating pressure
Temperature Range: -20°C to +120°C operational capability
Connection Types: Flanged, threaded, or custom connections
Diaphragm Material: Nitrile, EPDM, or other specialty compounds
Proper Installation of Baghouse Pulse Valves
For optimal performance of your Baghouse Pulse Valves, follow these guidelines:
Install in a clean, accessible location near the dust collector
Ensure proper alignment with the pulse jet piping
Use appropriate thread sealant or gaskets for airtight connections
Verify compressed air supply meets valve requirements
Our technical documents provide detailed installation instructions
Maintenance Best Practices
Extend the life of your Baghouse Pulse Valves with proper maintenance:
Regularly inspect diaphragms for wear or damage
Check for air leaks around valve connections
Monitor valve response times during operation
Keep compressed air clean and dry
Maintain spare parts inventory for quick replacements
Comparing Baghouse Pulse Valve Technologies
Different types of Baghouse Pulse Valves offer varying benefits:
Feature
Standard Pulse Valves
High-Performance Valves
Flow Rate
Standard
20-30% Higher
Diaphragm Life
500,000 cycles
1,000,000+ cycles
Response Time
15-25 ms
Under 10 ms
Energy Use
Standard
Optimized
Custom Baghouse Pulse Valve Solutions
GXR provides specialized Baghouse Pulse Valve solutions for unique applications:
Explosion-proof designs for hazardous environments
High-temperature models for hot gas applications
Corrosion-resistant materials for chemical processes
Compact designs for space-limited installations
Smart valves with IoT connectivity options
Global Supply and Support
We supply reliable Baghouse Pulse Valves to industries worldwide including:
Mexico and Brazil in Latin America
India, Thailand, and Vietnam in Asia
UK, Germany, and Poland in Europe
Russia and CIS countries
Our global logistics network ensures timely delivery of Baghouse Pulse Valves, supported by local technical assistance.
Material certifications for food and pharmaceutical applications
Enhance Your Dust Collection System with GXR
Upgrade your dust collection efficiency with GXR's premium Baghouse Pulse Valves. Our solutions offer:
Improved filter cleaning performance
Reduced compressed air consumption
Longer service intervals
Comprehensive technical support
Custom engineering solutions
Contact our technical team today to select the ideal Baghouse Pulse Valves for your specific application requirements and operational conditions.
HANUMAN Services
HANUMAN can professionally offer you with our pulse valves and supporting products, such as right angle type, submerged type, air control type, explosion-proof type, pulse control instrument, port connecting socket, venturi tube, and diaphragm.
