HANUMAN Services
HANUMAN can professionally offer you with our pulse valves and supporting products, such as right angle type, submerged type, air control type, explosion-proof type, pulse control instrument, port connecting socket, venturi tube, and diaphragm.
Specifications
|
Model |
DXY-Y-76SG |
|
Working pressure |
0.3 to 0.8 MPa |
|
Ambient temperature |
-5 to 55 ℃ |
|
Relative humidity |
85% or less |
|
Fluid |
Clean air |
|
Rated voltage |
110 VAC, 220 VAC, 24 VDC |
|
Current |
0.46A, 0.23A, 0.8A, ±10% |
|
Diaphragm life |
One million cycles or more |
|
Nominal diameter |
Ø50 mm |
|
Port size |
G2” |

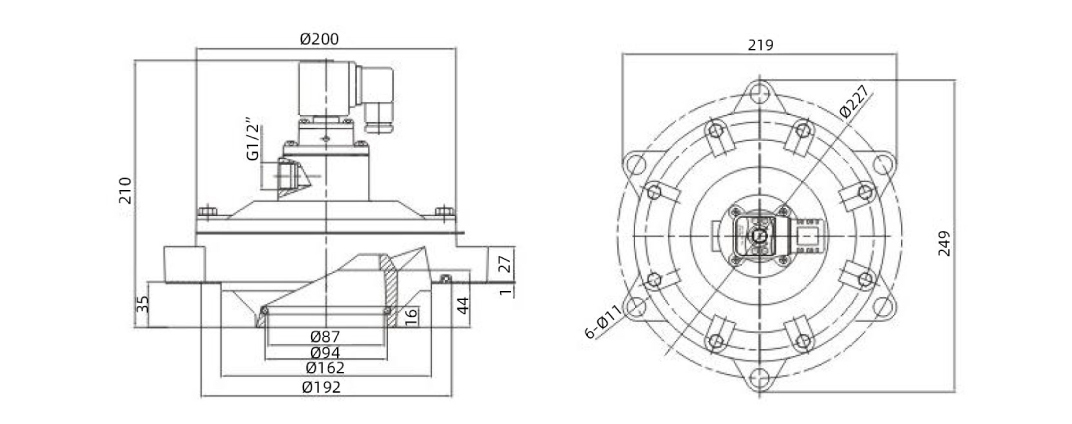

Overall Dimension(mm)
