Product Description
Dust Collector Pulse Valve: Efficient Dust Removal, Reliable Operation
Keep your dust collection system running at peak performance with our high-quality dust collector pulse valves.
These essential components deliver powerful bursts of compressed air to clean filter bags, preventing pressure drop and ensuring optimal airflow.
Our pulse valves are designed for
Durability: Constructed from robust materials to withstand harsh industrial environments.
Reliability: Consistent performance for extended service life, minimizing downtime.
Efficiency: Effective cleaning with minimal compressed air consumption, reducing operating costs.
Versatility: Compatible with a wide range of dust collector models and applications.
Available in a variety of sizes and configurations to meet your specific needs
| Model Number | Orifice Size | Voltage | Connection Type | Application |
|---|---|---|---|---|
| DC-PV-1" | 1 inch | 24V DC/110V AC/220V AC | NPT Thread | Small baghouses, portable dust collectors |
| DC-PV-1.5" | 1.5 inch | 24V DC/110V AC/220V AC | NPT Thread | Medium-sized baghouses, central dust collection systems |
| DC-PV-2" | 2 inch | 24V DC/110V AC/220V AC | NPT Thread | Large baghouses, heavy-duty industrial applications |
Features:
Fast response time: Ensures timely and efficient cleaning cycles.
Low air consumption: Reduces energy costs and compressor wear.
Easy installation and maintenance: Simplifies system upkeep.
Wide temperature range: Suitable for various operating environments.
Applications:
Woodworking
Metalworking
Food processing
Pharmaceutical
Chemical
Mining
Choose [Your Company Name] for reliable and efficient dust collector pulse valves.
Contact us today for more information and to request a quote!
HANUMAN Services
HANUMAN can professionally offer you with our pulse valves and supporting products, such as right angle type, submerged type, air control type, explosion-proof type, pulse control instrument, port connecting socket, venturi tube, and diaphragm.
What is a Dust Collector Pulse Valve? | Types & Applications
This valve is designed for particular occasions where there is a wide range of air source pressure, making it an ideal choice for installation in environmental protection dust – removing equipment. It features an air bag inserted and installed in the seat, resulting in small resistance, excellent fluidity, and a high blowing rate. Moreover, its load – driven capacity has been improved, which significantly widens the application range of air source pressure. Whether you need to upgrade your existing dust – collection system or are building a new one, our Dust Collector Pulse Valve can meet your requirements, ensuring efficient dust – removal operations.
Specifications
|
Model |
RMF-Z-50S |
|
Working pressure |
0.3 to 0.8 MPa |
|
Ambient temperature |
-5 to 55 ℃ |
|
Relative humidity |
85% or less |
|
Fluid |
Clean air |
|
Rated voltage |
110 VAC, 220 VAC, 24 VDC |
|
Current |
0.46A, 0.23A, 0.8A, ±10% |
|
Diaphragm life |
One million cycles or more |
|
Nominal diameter |
Ø50 mm |
|
Port size |
G2” |

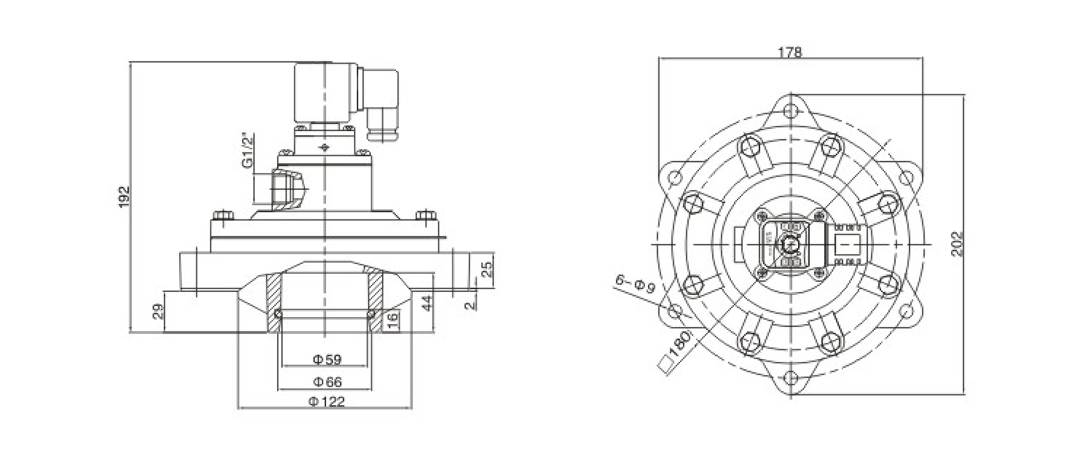

Overall Dimension(mm)
