Pneumatic Angle Seat Valves: Your Reliable China Factory Manufacturer

Discover the precision and reliability of our Pneumatic Angle Seat Valves, expertly crafted by our dedicated China Factory. As a leading Manufacturer in the industry, we pride ourselves on delivering top-quality valves that meet the highest standards.

Pneumatic Angle Seat Valve: Unlocking the Secret Component for Efficient Fluid Control in China Factory and by Leading Manufacturer

Pneumatic Angle Seat Valves are critical in the realm of industrial automation, particularly for efficient fluid control. These valves are engineered to provide precise and reliable regulation of fluid flow, a feature that is highly sought after in manufacturing processes. In China, where industrialization is rapidly advancing, these valves have become an essential component in numerous factory.

China manufacturers have been instrumental in the development and production of Pneumatic Angle Seat Valves, which are now recognized for their quality and efficiency. Factory across China rely on these valves to maintain high standards of operation and to enhance their fluid control systems. The precision and reliability of these valves are a testament to the expertise of China manufacturers, who have become key players in the global market for industrial automation components.

What is a pneumatic angle seat valve?

In the field of modern industrial automation, pneumatic angle seat valve is a valve that uses compressed air as a power source and drives the valve core through a cylinder to switch or adjust, achieving precise control of fluid media (such as gas, liquid). It has the characteristics of simple structure, fast response and good sealing performance. With its unique angle seat design, the valve not only effectively saves space, but also improves fluid flow efficiency. Pneumatic angle seat valves are often used in situations where fast response and precise control are required, such as in food processing, chemical, pharmaceutical and other industries.

Working principle of pneumatic angle seat valve

The working principle of the pneumatic angle seat valve is relatively simple and efficient. When the pneumatic actuator receives a control signal, it drives the piston or diaphragm through compressed air, which in turn drives the valve stem and valve core to move to open or close the valve. For single-acting pneumatic angle seat valves, when the air supply stops, the spring will return it to the initial state (normally open or normally closed). This design enables the pneumatic angle seat valve to operate stably in harsh environments, such as flammable and explosive places.

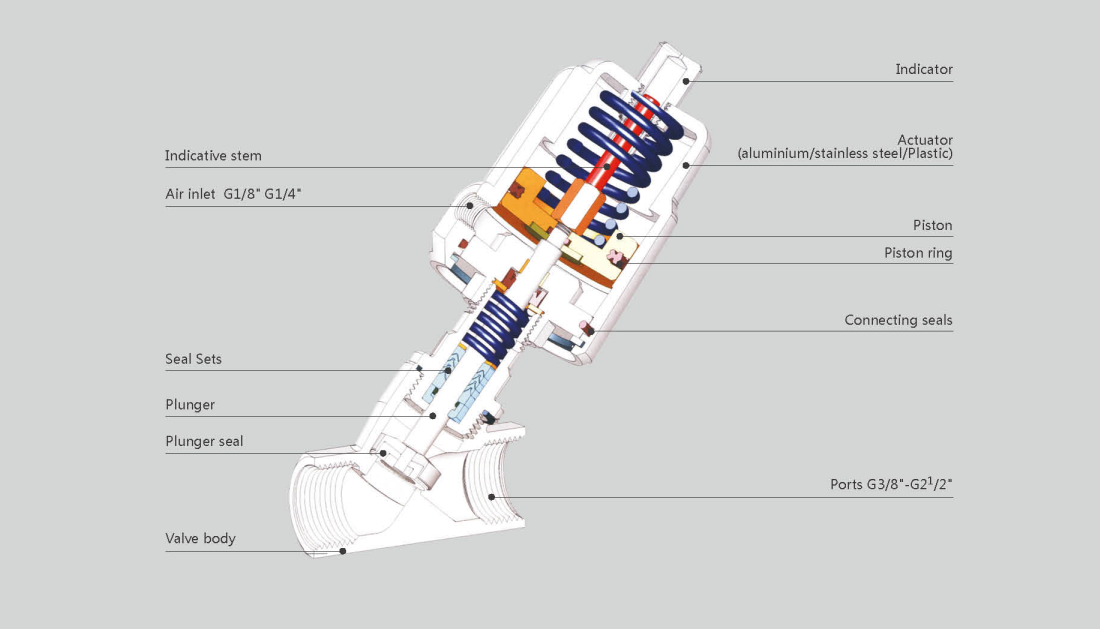

Structure of pneumatic angle seat valve

Pneumatic angle seat valve is mainly composed of actuator, valve body, valve seat, valve core, seals and other parts. The actuator is responsible for receiving control signals and driving the valve core to move; the valve body and valve seat constitute a fluid channel, and the movement of the valve core can change the opening degree of the channel; the seal ensures that the valve can effectively prevent fluid leakage when it is closed. In addition, some high-end pneumatic angle seat valves are also equipped with position indicators to facilitate users to observe the opening status of the valve.

Types of pneumatic angle seat valves

Pneumatic angle seat valves can be divided into many types depending on the application and needs.

Classification by actuator material:

Stainless steel actuator: It has excellent corrosion resistance and strength, and is suitable for the control of high temperature, high pressure and corrosive media.

Aluminum alloy actuator: light weight, high strength, and has good heat dissipation performance, suitable for general industrial control occasions.

Plastic actuator: low cost, corrosion-resistant, but relatively low strength, suitable for control of low pressure, normal temperature and non-corrosive media.

Classified by operation method:

Single-acting: The valve is opened or closed only by air supply and requires spring return. Suitable for occasions where only one-way control is required.

Double action: the valve is opened and closed by air supply and exhaust, without spring return. Suitable for occasions requiring two-way control.

Classification by control signal:

2-position 2-way: There are only two working states, namely open and closed, suitable for simple fluid control.

Two-position three-way: It has three channels and two working states, which can realize fluid reversal control.

Specific uses of pneumatic angle seat valves

Pneumatic angle seat valves play an important role in industrial automation. They are often used to control the flow, pressure and direction of gases and liquids for precise process control. In the food processing industry, pneumatic angle seat valves are used to control the flow of food-grade dairy products to ensure product quality; in the chemical industry, they are used to control the delivery of corrosive liquids to ensure production safety. In addition, pneumatic angle seat valves are also widely used in pharmaceutical, papermaking, printing and dyeing and other industries.

Precautions for installing pneumatic angle seat valve

When installing a pneumatic angle seat valve, you need to pay attention to the following points: first, ensure the alignment and sealing of the valve and the pipeline to avoid fluid leakage; second, select the appropriate actuator material and type according to the use occasion to ensure the stable operation of the valve; Finally, during installation, take care to protect the actuator and seals from damage. In addition, valves need to be inspected and maintained regularly to ensure their long-term stable operation.

Why Choose GXR Pneumatic Angle Seat Valve Manufacturer

As a well-known manufacturer of industrial automation products in China, it has many years of experience in the research and development and production of pneumatic angle seat valves in China. Its products not only have reliable quality and excellent performance, but also have a complete range and reasonable prices. The factory adopts advanced production technology and testing equipment to ensure that each pneumatic angle seat valve meets international standards. It also provides a full range of pre-sales, sales and after-sales services, and can provide customized solutions according to customer needs.
