Product Description
Pneumatic Pulse Valves: Reliable and Efficient Dust Collection Solutions
Ensure optimal performance of your dust collection system with our high-quality pneumatic pulse valves.
These valves deliver controlled bursts of compressed air to effectively clean filter bags, preventing clogging and maintaining consistent airflow.
Our pneumatic pulse valves are designed for
Durability: Constructed from robust materials to withstand demanding industrial environments.
Reliability: Consistent performance for extended service life, minimizing downtime.
Efficiency: Effective cleaning with minimal compressed air consumption, reducing operating costs.
Versatility: Compatible with a wide range of dust collector models and applications.
Available in a variety of sizes and configurations to meet your specific needs
| Model Number | Orifice Size | Voltage | Connection Type | Flow Rate | Application |
|---|---|---|---|---|---|
| PPV-1" | 1 inch | 24V DC/110V AC/220V AC | NPT Thread | 25 SCFM | Small baghouses, portable dust collectors |
| PPV-1.5" | 1.5 inch | 24V DC/110V AC/220V AC | NPT Thread | 50 SCFM | Medium-sized baghouses, central dust collection systems |
| PPV-2" | 2 inch | 24V DC/110V AC/220V AC | NPT Thread | 100 SCFM | Large baghouses, heavy-duty industrial applications |
Features
Fast response time: Ensures timely and efficient cleaning cycles.
Low air consumption: Reduces energy costs and compressor wear.
Easy installation and maintenance: Simplifies system upkeep.
Wide temperature range: Suitable for various operating environments.
Applications
Woodworking
Metalworking
Food processing
Pharmaceutical
Chemical
Mining
Choose [HANUMAN] for reliable and efficient pneumatic pulse valves.
Contact us today for more information and to request a quote!
HANUMAN Services
HANUMAN can professionally offer you with our pulse valves and supporting products, such as right angle type, submerged type, air control type, explosion-proof type, pulse control instrument, port connecting socket, venturi tube, and diaphragm.
Specifications
|
Model |
RMF-Z-62S |
|
Working pressure |
0.3 to 0.8 MPa |
|
Ambient temperature |
-5 to 55 ℃ |
|
Relative humidity |
85% or less |
|
Fluid |
Clean air |
|
Rated voltage |
110 VAC, 220 VAC, 24 VDC |
|
Current |
0.46A, 0.23A, 0.8A, ±10% |
|
Diaphragm life |
One million cycles or more |
|
Nominal diameter |
Ø62 mm |
|
Port size |
G2-1/2” |

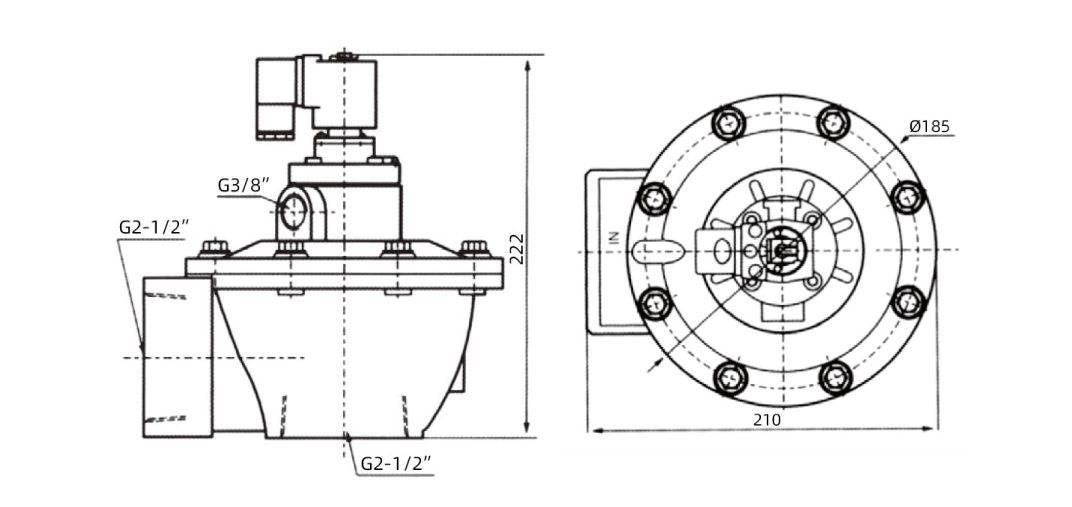

Overall Dimension(mm)
