Product Description

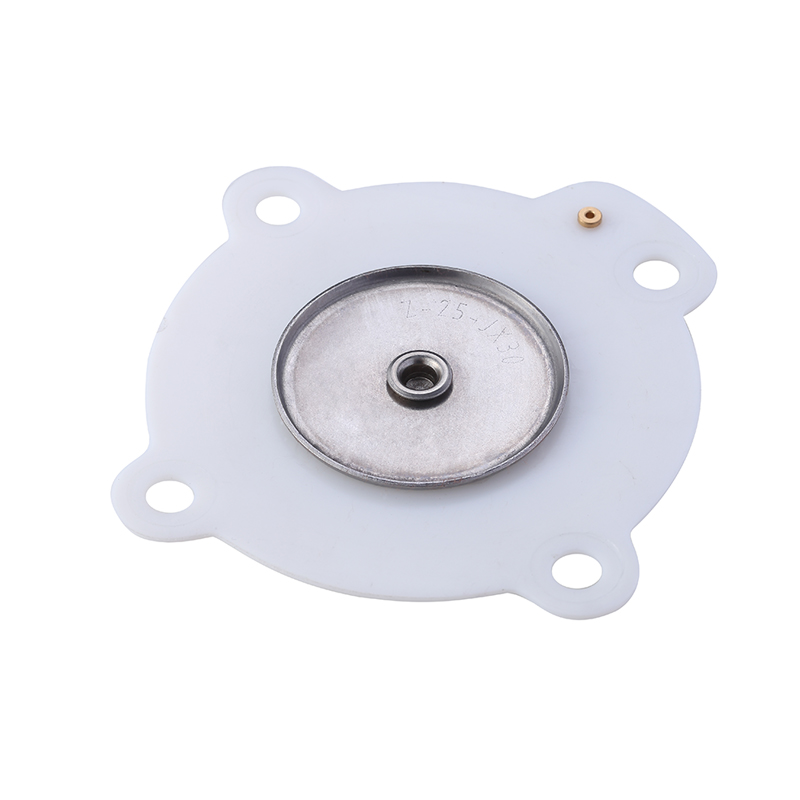

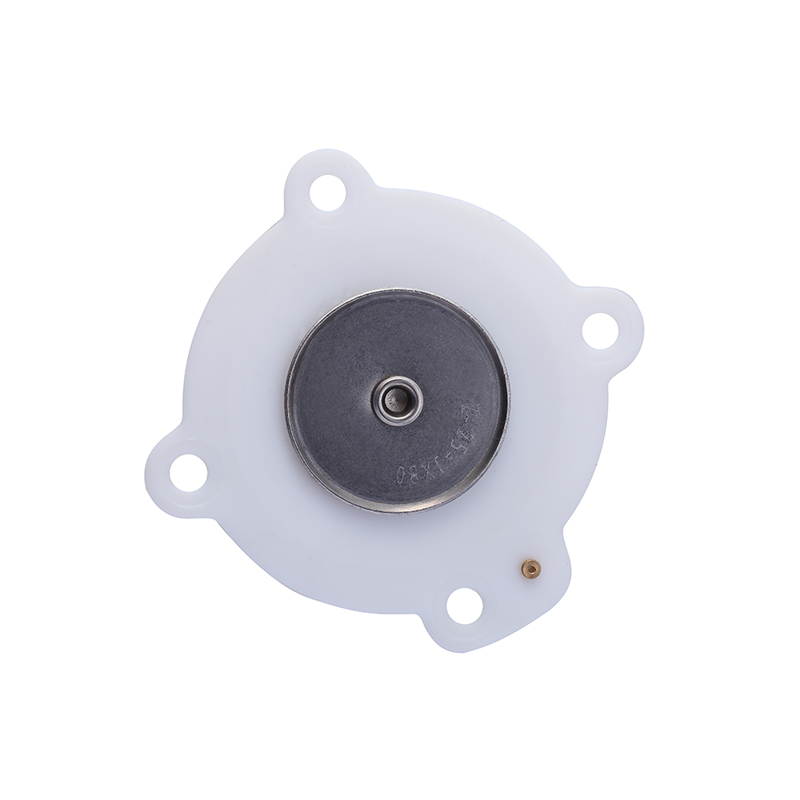

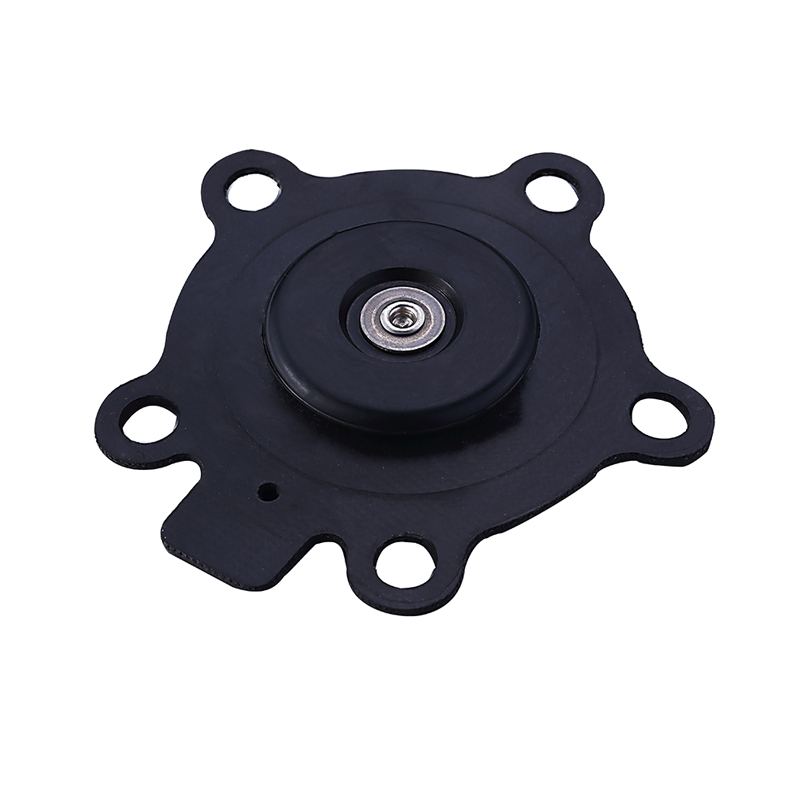

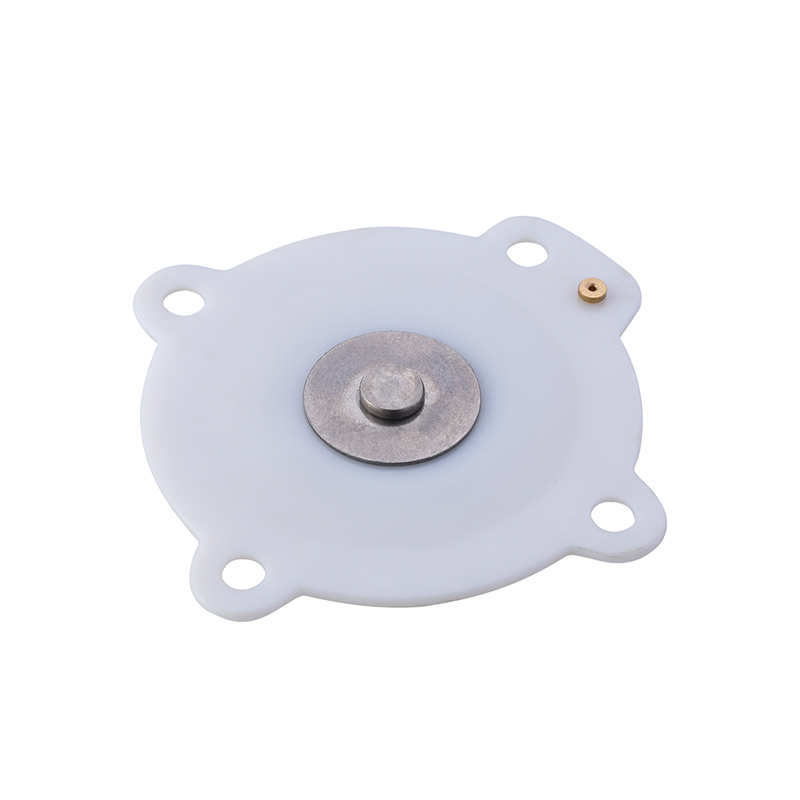

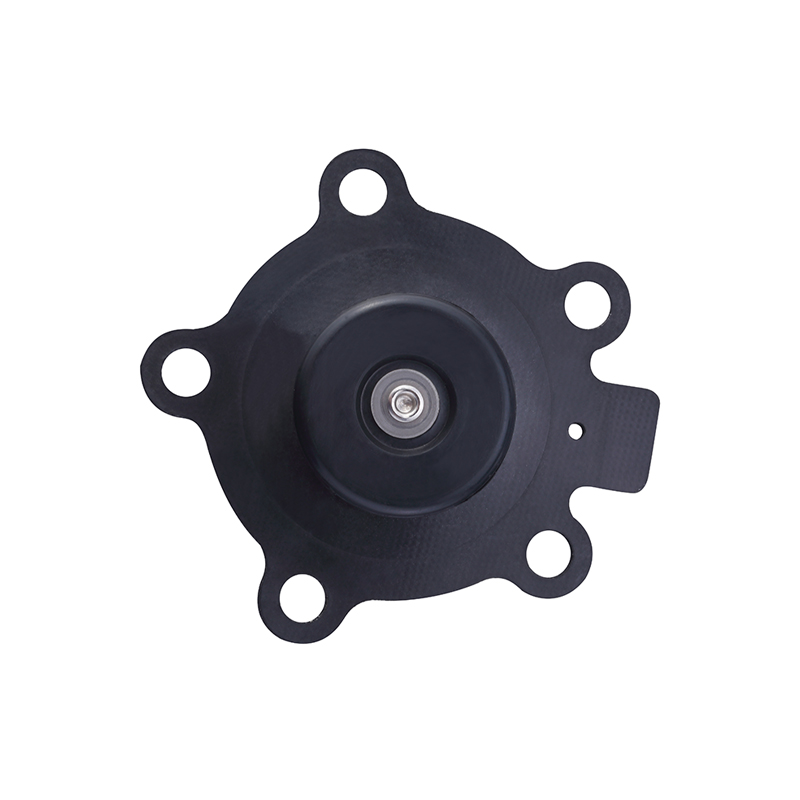

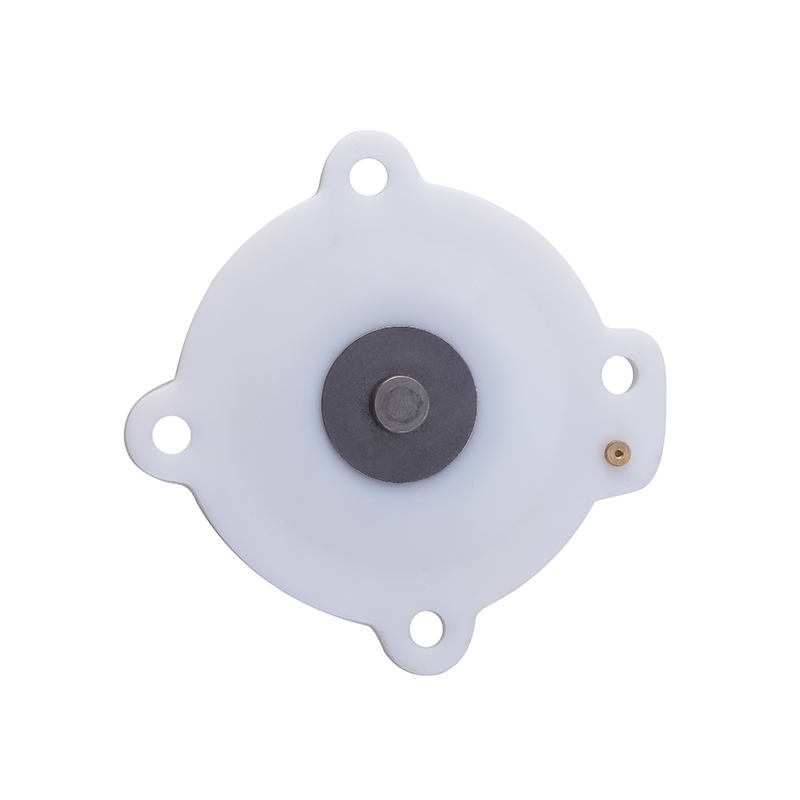

Pulse Valve Diaphragm: The Heart of Reliable Dust Collection
Ensure optimal performance and longevity of your pulse valves with our high-quality pulse valve diaphragms.
These critical components play a vital role in the efficient operation of your dust collection system, delivering precise bursts of compressed air to clean filter bags and maintain consistent airflow.
Our pulse valve diaphragms are designed for
Durability: Manufactured from premium materials to withstand the rigors of continuous operation and harsh industrial environments.
Reliability: Consistent performance for extended service life, minimizing downtime and maintenance costs.
Efficiency: Precise air delivery ensures effective cleaning of filter bags, maximizing dust collection efficiency.
Compatibility: Available for a wide range of pulse valve models and brands.
We offer a comprehensive selection of pulse valve diaphragms to suit your specific needs
<table style="border-collapse: collapse; color: rgb(64, 64, 64); font-family: Inter, system-ui, -apple-system, BlinkMacSystemFont, " segoe="" ui",="" roboto,="" "noto="" sans",="" ubuntu,="" cantarell,="" "helvetica="" neue",="" oxygen,="" "open="" sans-serif;="" font-size:="" 16.002px;"="">Model NumberMaterialDiameterThicknessCompatible Valve ModelsPVD-NBR-2"Nitrile Rubber (NBR)2 inch0.06 inchDMF-25, PPV-1"PVD-EPDM-2.5"EPDM Rubber2.5 inch0.08 inchDMF-50, PPV-1.5"PVD-PTFE-3"PTFE3 inch0.1 inchDMF-100, PPV-2"Key Features
High-quality materials: Resistant to wear, tear, and harsh chemicals for extended service life.
Precision engineering: Ensures proper fit and reliable operation within your pulse valve.
Wide temperature range: Suitable for various operating environments.
Cost-effective solution: Extend the life of your pulse valves and reduce maintenance costs.
Applications
Woodworking
Metalworking
Food processing
Pharmaceutical
Chemical
Mining
Choose [HANUMAN] for reliable and durable pulse valve diaphragms.
Contact us today for more information and to request a quote!
HANUMAN Services
HANUMAN can professionally offer you with our pulse valves and supporting products, such as right angle type, submerged type, air control type, explosion-proof type, pulse control instrument, port connecting socket, venturi tube, and diaphragm.
Specifications
|
Model |
AXY pulse valve diaphragm |
|
Working pressure |
0.3 to 0.8 MPa |
|
Ambient temperature |
-20 to 80 ℃ |
|
Fluid |
Clean air |
|
Diaphragm life |
One million cycles or more |
|
Material |
NBR, FKM, PTFE |
|
Sealing performance |
No air leakage |

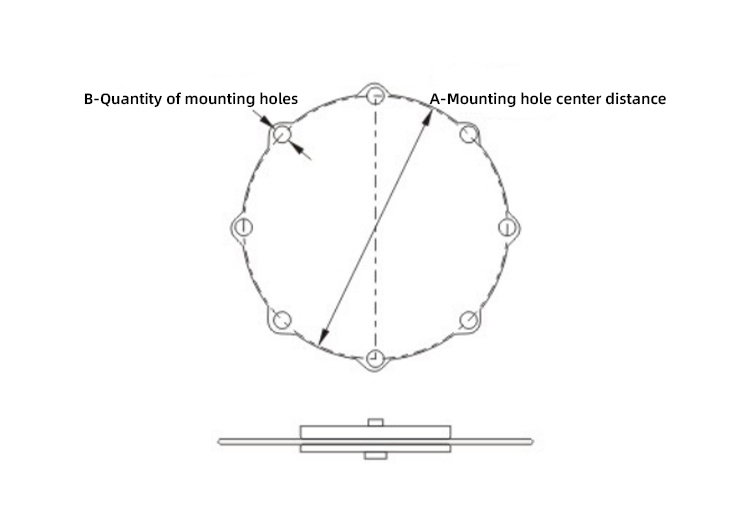

Overall Dimension(mm)
|

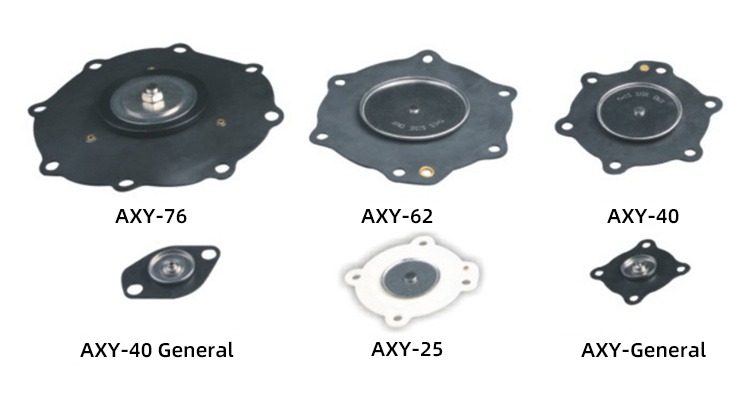

Model |
A |
B |
|
AXY-76 |
Ø189 |
8 |
|
AXY-62 |
Ø145.5 |
6 |
|
AXY-50 |
Ø145.5 |
6 |
|
AXY-40 |
Ø116.5 |
6 |
|
AXY-General |
Ø61 |
4 |
|
AXY-40 General |
Ø47 |
2 |
|
AXY-25 |
Ø78 |
4 |
