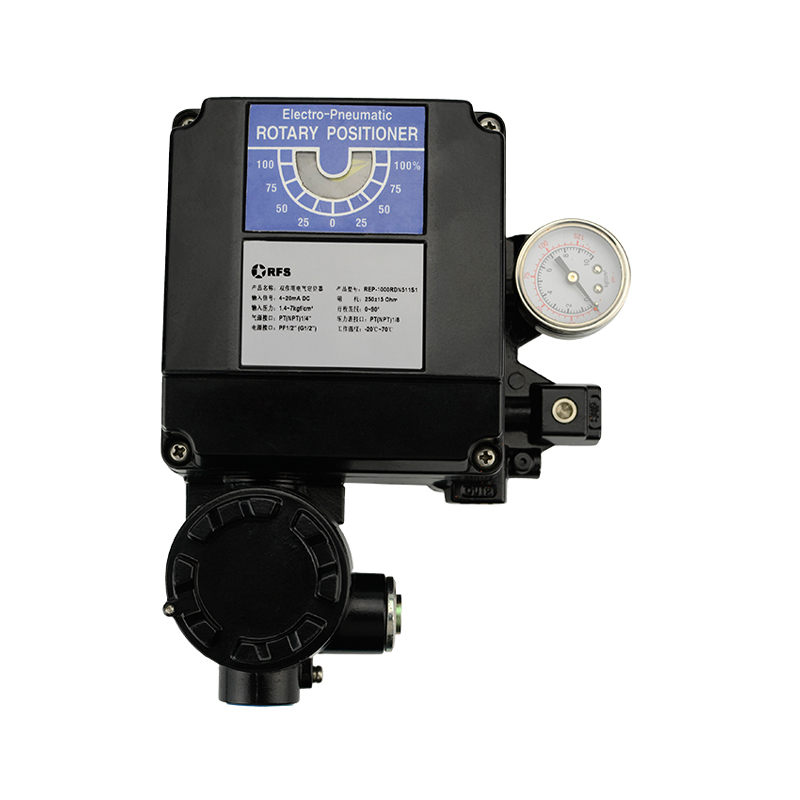

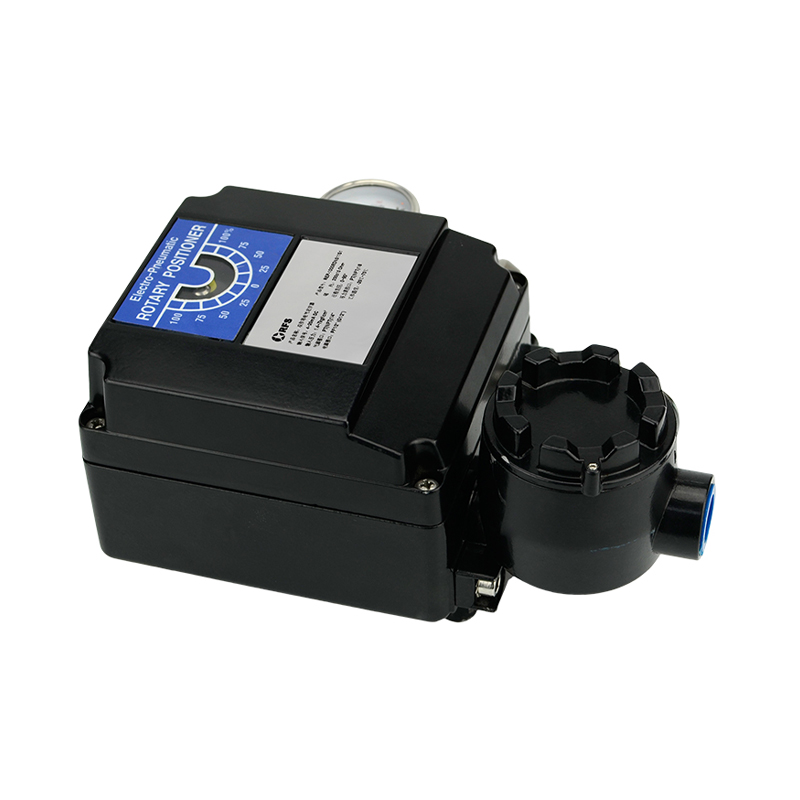

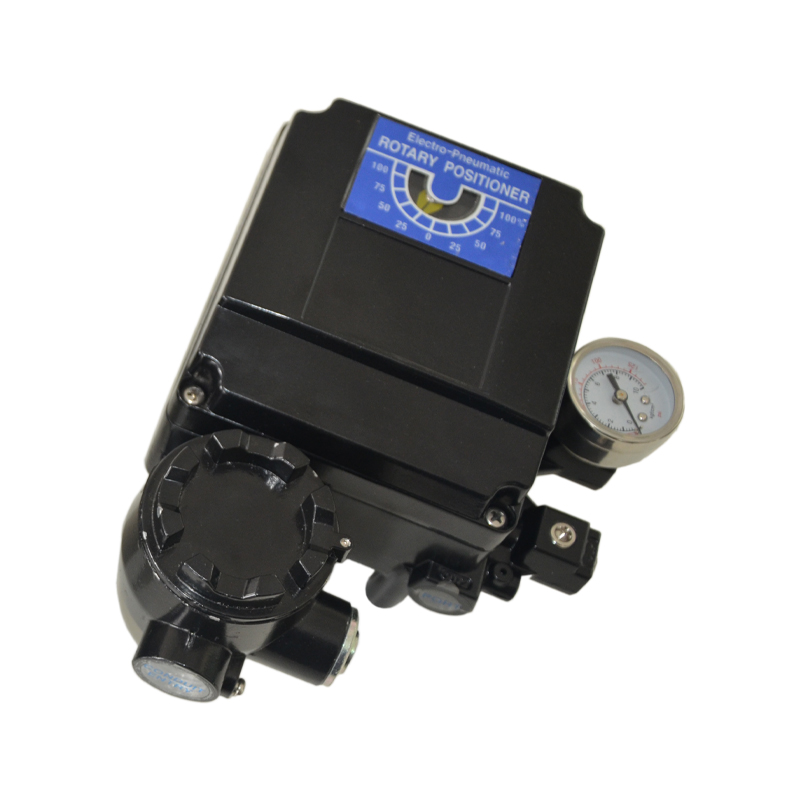

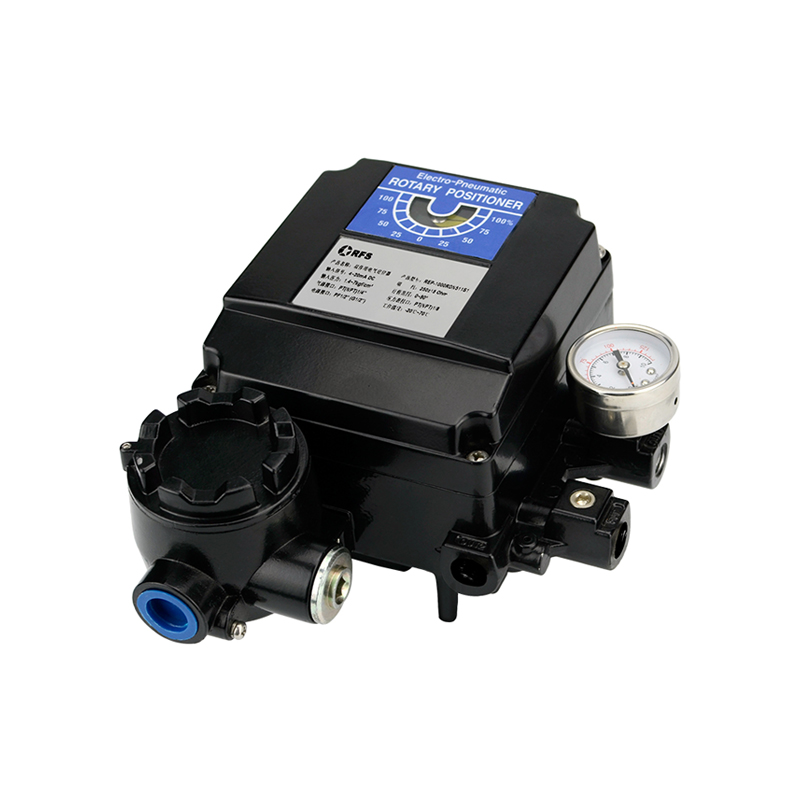

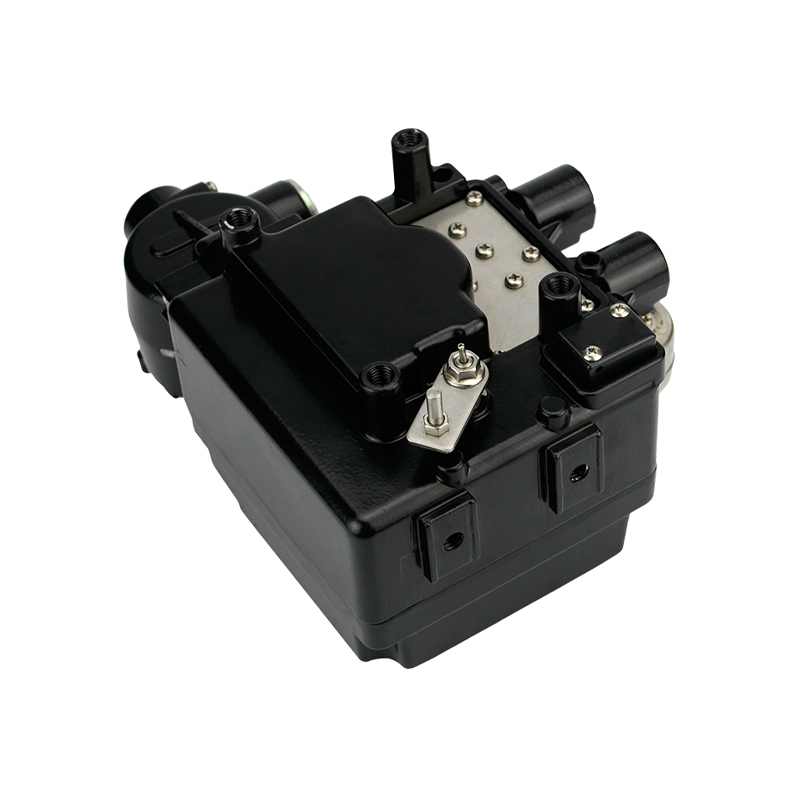

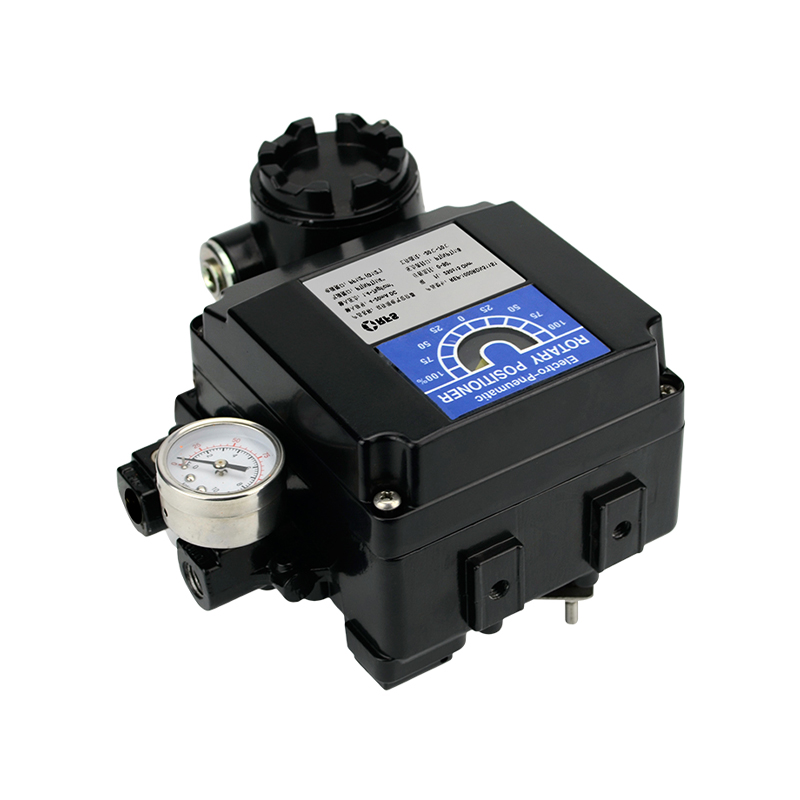

The pneumatic valve positioner is used for operation of pneumatic rotary valve actuators by means of electrical controller or control systems with a similar output signal of 4 to 20mA DC or split ranges.
We normally can offer EP-1000R (rotary type) and EP-1000L (linear type), single-acting and double-acting types, Exd mIIBT5 and non explosion-proof types, and with different ambient temperatures of S (-20 to 60 ℃), H (-20 to 120 ℃), L (-40 to 70 ℃).
Specifications
|
Model |
REP-1000R |
|
Action |
Double-acting |
|
Input signal |
4 to 20 mA DC |
|
Impedance |
250±15 Ohm |
|
Supply pressure |
1.4 to 7 kgf/cm2(20 to 100 psi) |
|
Stroke |
0 to 90 ° |
|
Air connection |
1/4”, PT, NPT |
|
Gauge connection |
1/8”, PT, NPT |
|
Conduit |
1/2”, PF, G |
|
Explosion proof |
ExiaIIC T6 Ga, ExdIIB T6 |
|
Protection class |
IP66 |
|
Ambient temperature |
Operating -20 to 70 ℃ Explosion -20 to 60 ℃ |
|
Linearity |
±2% F.S. |
|
Hysteresis |
±1% F.S. |
|
Sensitivity |
±0.5% F.S. |
|
Repeatability |
±0.5% F.S. |
|
Air consumption |
3 LPM (SUP=1.4 kgf/cm2, 20 psi) |
|
Flow capacity |
80 LPM (SUP=1.4 kgf/cm2, 20 psi) |
|
Material |
Aluminum die casting |
|
Weight |
2.8 kg (6.2 lb) |
