HANUMAN can offer plastic pneumatic fittings with different overall shapes, tube outer diameters, thread types and sizes, body and sleeve button colors. Generally, these air fittings can be applied in pipeline system which is occurred in aerospace, metallurgy, mine, forge and press, coal, petroleum, ship, machine tool, chemical equipment, and other agricultural machinery. They can totally realize the fast conversion under safe, efficient, and no leakage conditions.

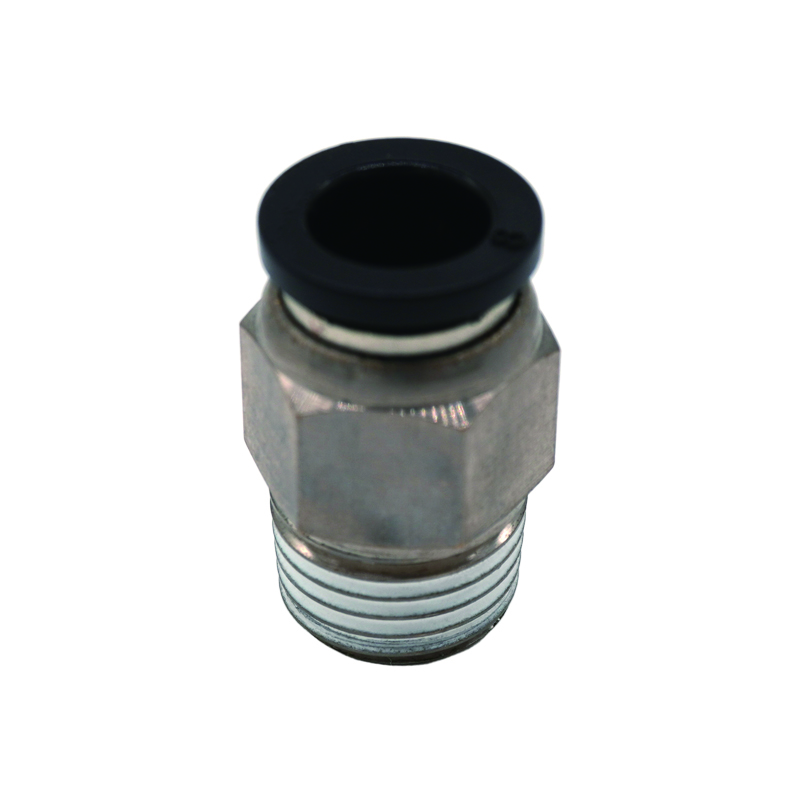

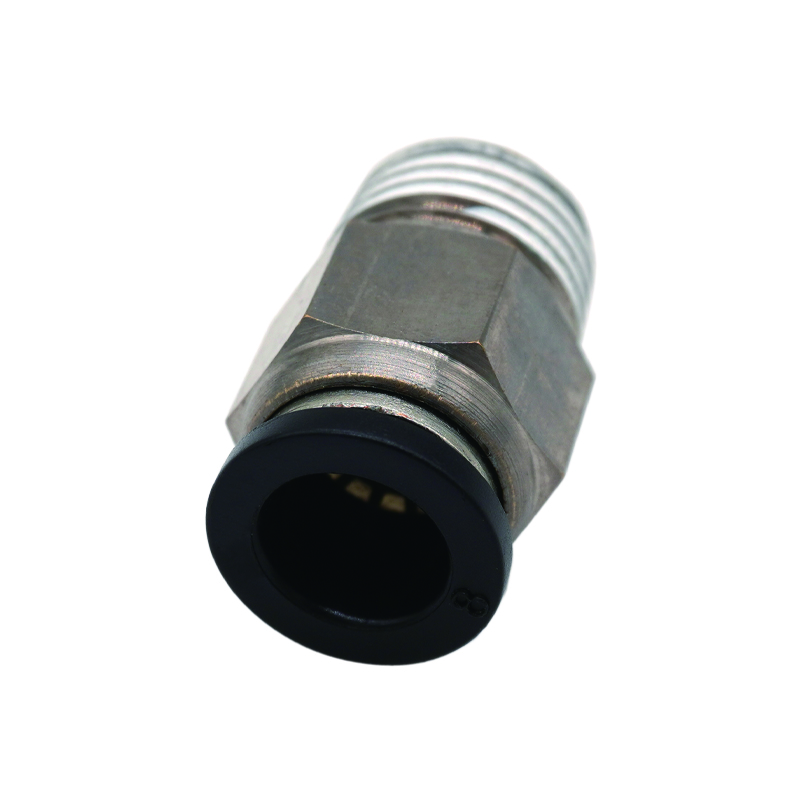

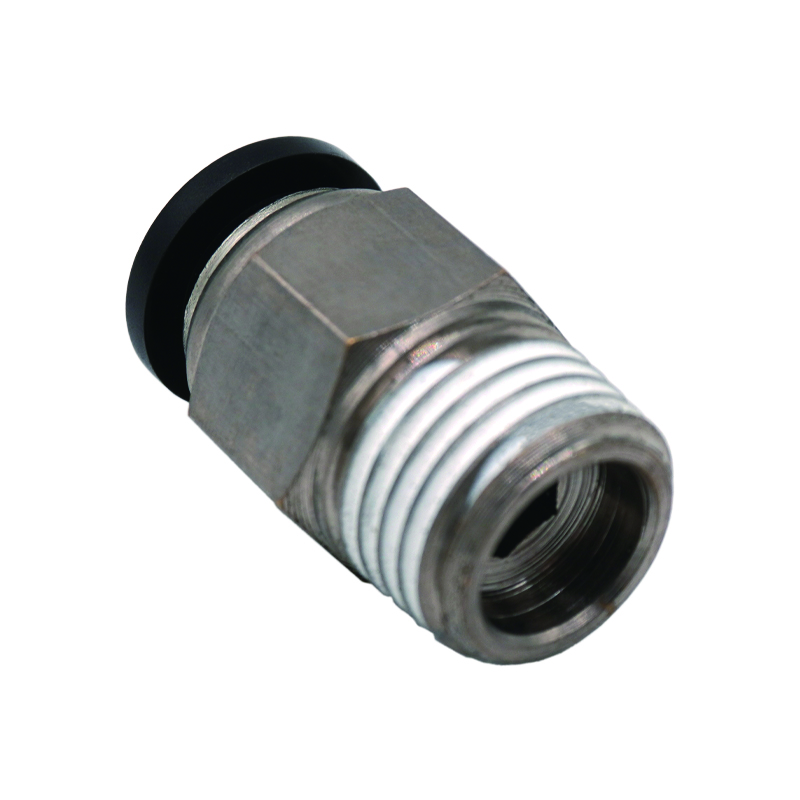

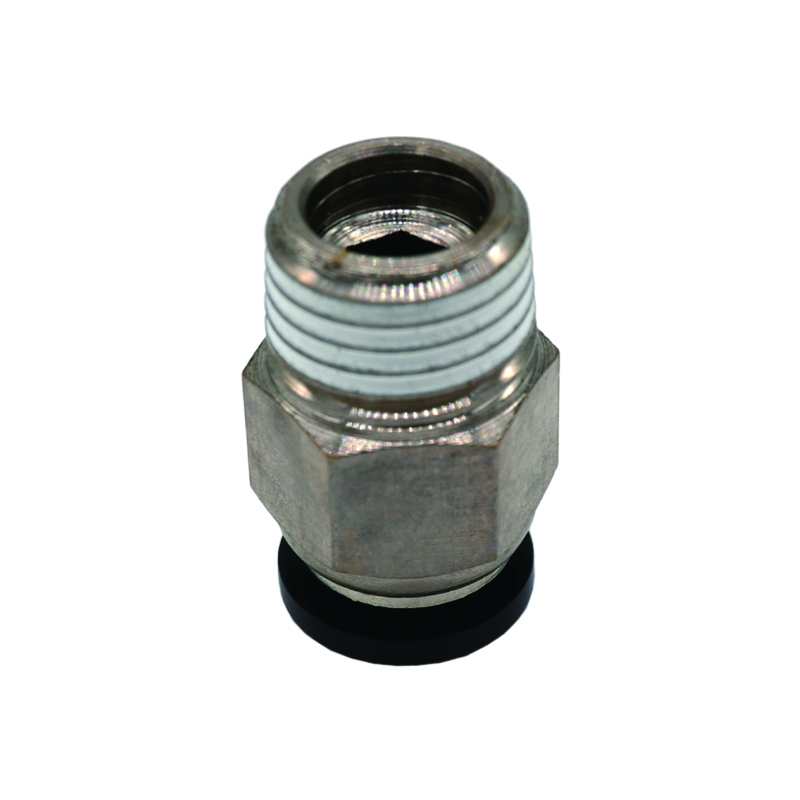

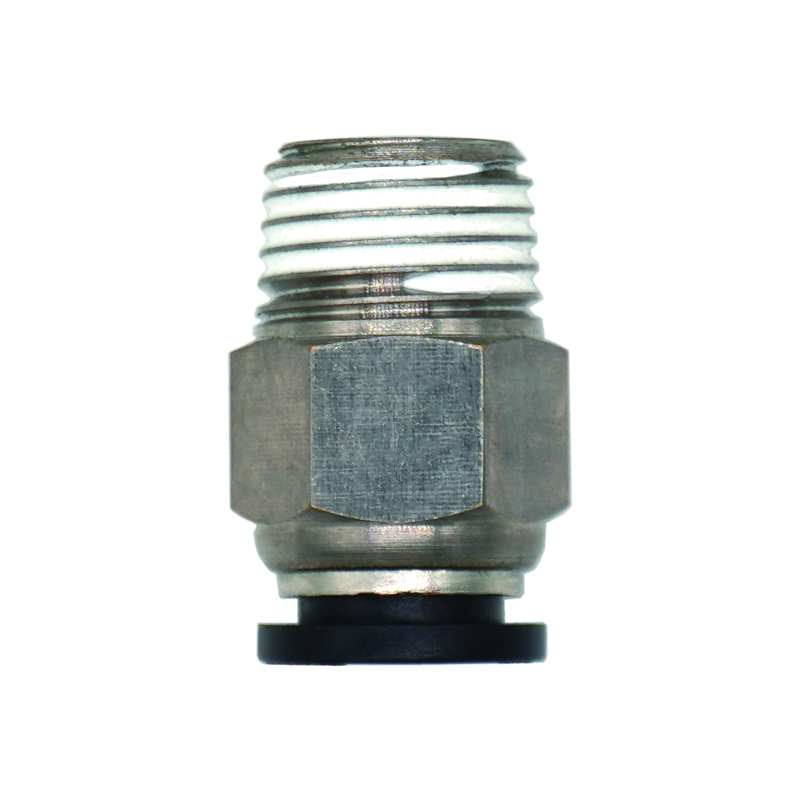

This model of PC4-M6 straight pneumatic pipe one touch PU tube push in plastic air fittings normally have metric size R thread type and inch size NPT thread type.
ODM/OEM Services
We have strong technical engineers for making a new mould to produce a new plastic pneumatic fittings based on the 2D/3D drawings that you provided, including body materials, shapes, thread types, connection types, application areas, and so on.
Specifications
|
Fluid |
Air, vacuum |
|
Operating pressure range |
0 to 1 MPa |
|
Negative pressure |
-100 kPa |
|
Proof pressure |
1.5 MPa |
|
Ambient and fluid temperature |
0 to 60 ℃ |
|
Application |
PU, nylon tubes |

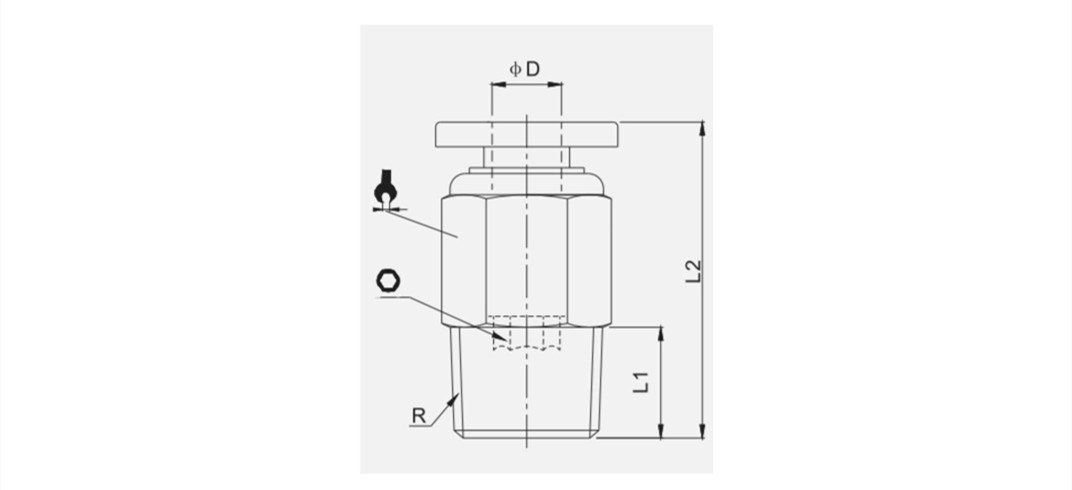

Overall Dimension(mm)
|
Model |
ØD |
R |
L1 |
L2 |
Hex socket |
Wrench |
|
PC04-M5 |
4 |
M5 |
3.5 |
20.3 |
2 |
10 |
|
PC04-M6 |
4 |
M6 |
4 |
20.8 |
2 |
10 |
|
PC04-01 |
4 |
R1/8 |
7.5 |
20 |
3 |
10 |
|
PC04-02 |
4 |
R1/4 |
9.5 |
18 |
3 |
14 |
|
PC04-03 |
4 |
R3/8 |
10.5 |
19 |
3 |
17 |
|
PC06-M5 |
6 |
M5 |
3.5 |
21 |
2 |
12 |
|
PC06-M6 |
6 |
M6 |
4 |
21 |
2 |
12 |
|
PC06-01 |
6 |
R1/8 |
7.5 |
20.5 |
4 |
12 |
|
PC06-02 |
6 |
R1/4 |
9.5 |
22.5 |
4 |
14 |
|
PC06-03 |
6 |
R3/8 |
10.5 |
20.5 |
4 |
17 |
|
PC06-04 |
6 |
R1/2 |
13.5 |
24.5 |
4 |
21 |
|
PC08-M5 |
8 |
M5 |
3.5 |
24 |
2 |
14 |
|
PC08-M6 |
8 |
M6 |
4 |
23.5 |
2 |
14 |
|
PC08-01 |
8 |
R1/8 |
7.5 |
25.5 |
5 |
14 |
|
PC08-02 |
8 |
R1/4 |
9.5 |
24.5 |
5 |
14 |
|
PC08-03 |
8 |
R3/8 |
10.5 |
21.5 |
6 |
17 |
|
PC08-04 |
8 |
R1/2 |
13.5 |
25.5 |
6 |
21 |
|
PC10-01 |
10 |
R1/8 |
7.5 |
29.5 |
5 |
17 |
|
PC10-02 |
10 |
R1/4 |
9.5 |
31 |
6 |
17 |
|
PC10-03 |
10 |
R3/8 |
10.5 |
28.5 |
8 |
17 |
|
PC10-04 |
10 |
R1/2 |
13.5 |
26.5 |
8 |
21 |
|
PC12-01 |
12 |
R1/8 |
7.5 |
31 |
5 |
21 |
|
PC12-02 |
12 |
R1/4 |
9.5 |
33 |
6 |
21 |
|
PC12-03 |
12 |
R3/8 |
10.5 |
30 |
8 |
21 |
|
PC12-04 |
12 |
R1/2 |
13.5 |
32.5 |
8 |
21 |
|
PC14-03 |
14 |
R3/8 |
10.5 |
34 |
8 |
22 |
|
PC14-04 |
14 |
R1/2 |
13.5 |
33 |
10 |
22 |
|
PC15-03 |
15 |
R3/8 |
10.5 |
37 |
8 |
24 |
|
PC15-04 |
15 |
R1/2 |
13.5 |
35 |
10 |
24 |
|
PC16-02 |
16 |
R1/4 |
9.5 |
36 |
8 |
24 |
|
PC16-03 |
16 |
R3/8 |
10.5 |
36.5 |
8 |
24 |
|
PC16-04 |
16 |
R1/2 |
13.5 |
38.5 |
10 |
24 |
|
PC16-06 |
16 |
R3/4 |
15 |
41 |
|
27 |
