HANUMAN services
HANUMAN can offer you with various models of air grippers, such as MIW, MIS, MHT2, MHS2, MHS3, MHSH3, MHS4, MHL2, MHF2, MHY2, MHZ, and MHC, with options of single acting, double acting, bore size, auto switch, port size, parallel type, standard type, short stroke, medium stroke, long stroke, NC, NO, finger quantity, port thread, and mounting accessories.
Specifications
|
Model |
MHT2-32D |
MHT2-40D |
MHT2-50D |
MHT2-63D |
|
Bore size |
32 mm |
40 mm |
50 mm |
63 mm |
|
Action |
Double acting |
|||
|
Fluid |
Air |
|||
|
Operating pressure range |
0.1 to 0.6 MPa |
|||
|
Ambient and fluid temperature |
+5 to +60 ℃ (No freezing) |
|||
|
Lubrication |
Not required |
|||
|
Opening and closing angle |
-3° to 28° |
-3° to 27° |
-2° to 23° |
-2° to 23° |
|
Gripping force at 0.5 MPa |
12.4 N |
36 N |
63 N |
106 N |

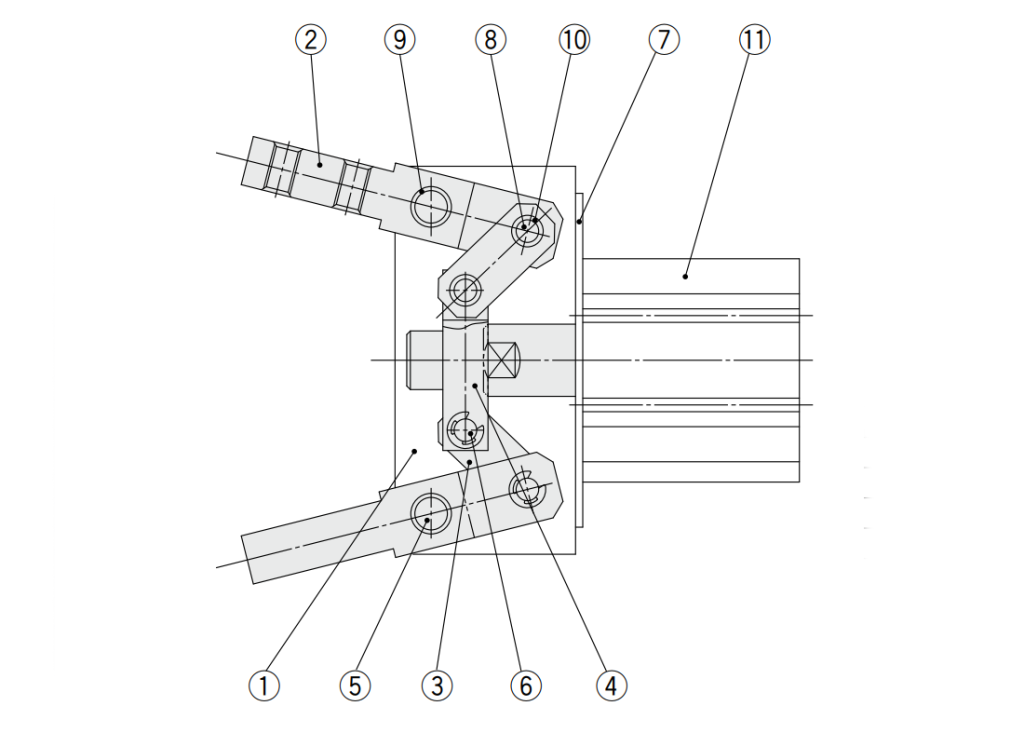

Construction
|
No. |
Description |
Material |
|
1 |
Side plate |
Aluminium alloy |
|
2 |
Finger |
Carbon steel |
|
3 |
Lever |
Carbon steel |
|
4 |
Joint |
Carbon steel |
|
5 |
Shaft |
Stainless steel |
|
6 |
Joint pin |
Stainless steel |
|
7 |
Cylinder plate |
Soft steel |
|
8 |
Lever pin |
Stainless steel |
|
9 |
Bearing |
/ |
|
10 |
Bearing |
/ |
|
11 |
Cylinder |
/ |
