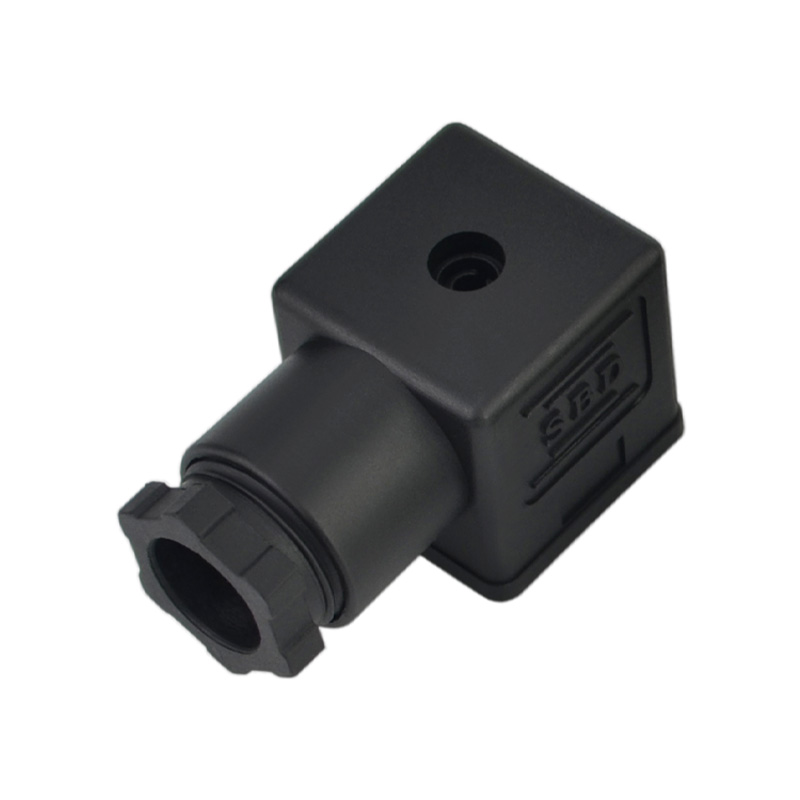

HANUMAN can offer you with our valuable DIN43650A, DIN43650B, DIN43650C series of solenoid valve coil connectors, which normally are divided into such five pin distance types as 18mm, 11mm, 10mm, 9.4mm, and 8mm, contact numbers of 3 pins (2+Ground) and 4 pins (3+Ground), rated voltages of 250 VAC, 380VAC, and 300 VDC, brand logos of SBD and blank, outer housing colors of black, brown, transparent, white, and grey, gasket types of flat and profiled, protection classes of IP65 and IP67, M3 mounting screw lengths of 25mm, 28mm and 30mm.
Specifications
|
Serial No. |
SB201 |
|
Model |
DIN43650A |
|
Pin distance |
18 mm |
|
Contact number |
2+1GND, 3+1GND |
|
Protection class |
IP65(IEC60529) |
|
Rated voltage |
250 VAC, 300 VDC, 380 VAC |
|
Rated current |
10 A |
|
Contact resistance |
5 mΩ or less |
|
Conductor size |
3×1.5mm2 |
|
Mounting gasket |
Profile NBR, black |
|
Mounting screw |
M3×28 |

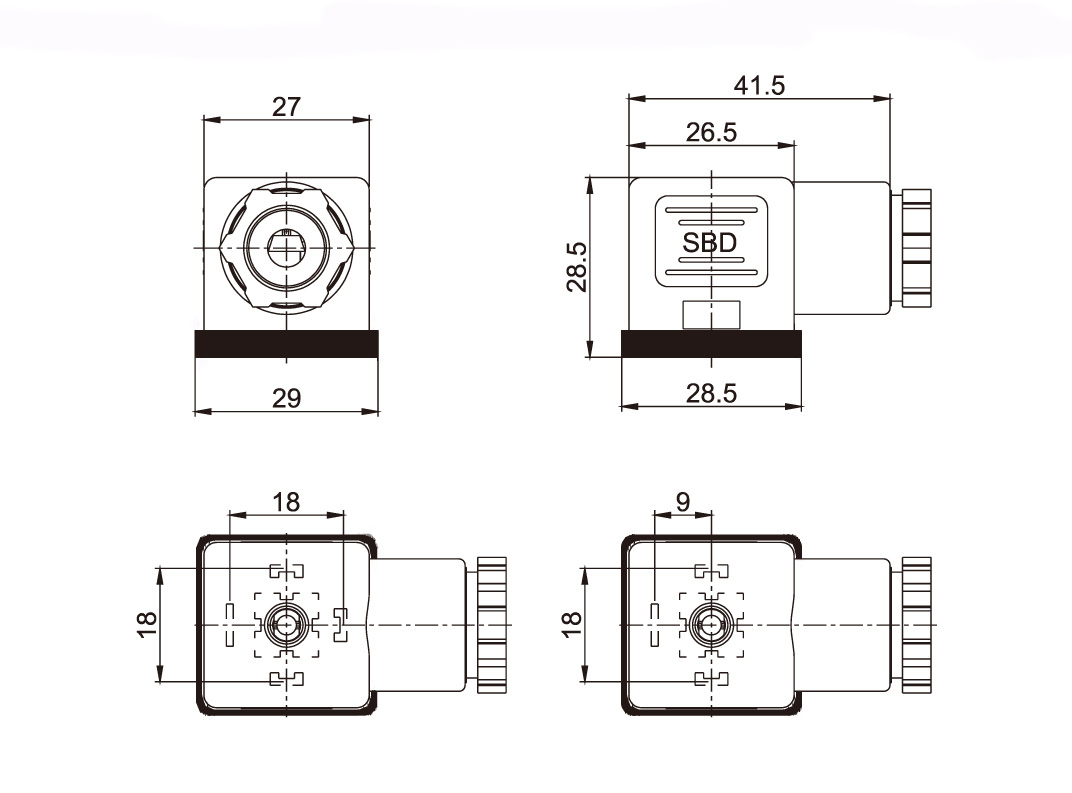

Overall Dimension(mm)
Installation note
Firstly open housing and loosen screws, then connect the power cable to the core terminals marked with 1, 2, or 3, the ground cable to the core terminal marked with ground symbol, and finally tighten the screws.
Attention
I. The input voltage must be in the range of identifying voltages of connectors.
II. The selection keys include housing color, pin distance, number of contacts, voltage, LED color, diode, rectifier, and gasket.
