HANUMAN can offer 2W series of 2-position 2-way directly operated diaphragm solenoid valves, with large orifice from 16mm to 50mm, brass or stainless steel body, 1/8″ to 2″ port size, normally closed or normally open function, and NBR or EPDM or VITON seal.
Specifications
|
Model |
Fluid |
Action |
Form |
Flow aperture |
Cv value |
Port size |
Medium viscosity |
Working pressure |
Maximum pressure resistance |
Working temperature |
Rated voltage |
Power consumption |
Body material |
Oil seal material |
|
2W160-10 |
Air Water Oil |
Direct acting |
Normally closed |
16 |
4.8 |
3/8” |
＜20CST |
0 to 0.7 MPa |
1.0 MPa |
-5 to 80 ℃ |
12-24V DC 24-380V AC ±10% |
23.4W DC 26V AC |
Brass |
NBR EPDM VITON |
|
2W160-15 |
16 |
4.8 |
1/2” |
|||||||||||
|
2W200-20 |
20 |
7.6 |
3/4” |
|||||||||||
|
2W250-25 |
25 |
12 |
1” |
|||||||||||
|
2W350-35 |
35 |
24 |
1 1/4 ” |
|||||||||||
|
2W400-40 |
40 |
29 |
1 1/2” |
40W DC 50VA AC |
||||||||||
|
2W500-50 |
50 |
48 |
2” |

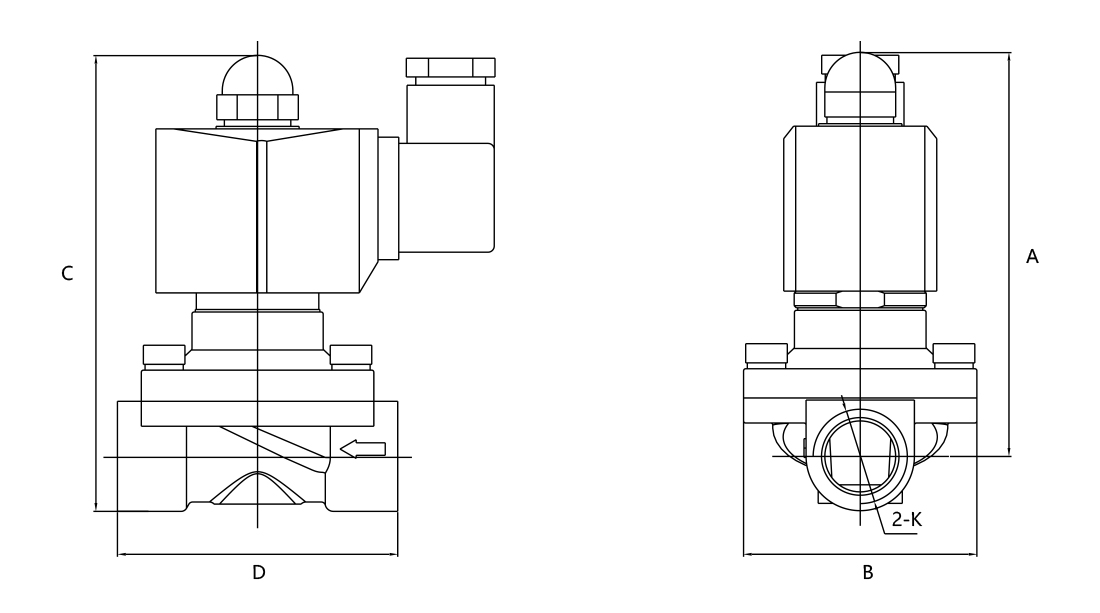

Overall Dimension(mm)
|
Model |
A |
B |
C |
D |
K |
|
2W160-10 |
97 |
57 |
110 |
66 |
G3/8” |
|
2W160-15 |
97 |
57 |
110 |
66 |
G1/2” |
|
2W200-20 |
106 |
57 |
115 |
70 |
G3/4” |
|
2W250-25 |
106 |
73 |
122 |
99 |
G1” |
|
2W350-35 |
136 |
90.5 |
167 |
124 |
G1-1/4” |
|
2W400-40 |
136 |
90.5 |
167 |
124 |
G1-1/2” |
|
2W500-50 |
151 |
124 |
186 |
164 |
G2” |
Installation and Usage
Before use, check whether the components are damaged during transportation, and then install and use.
During installation, pay attention to whether the medium flow direction and the thread type of the pipe are correct (the medium must be filtered through a filter screen of 40μm or above).
Pay attention to whether the installation conditions meet the technical requirements (such as rated voltage, operating frequency, working pressure, operating temperature range, etc.), and then install it horizontally.
