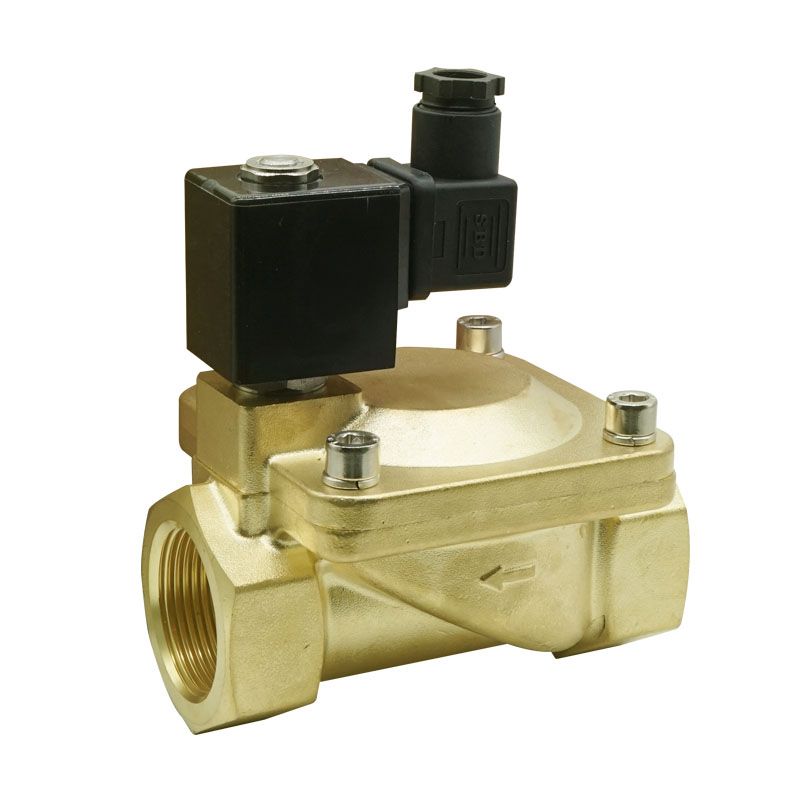

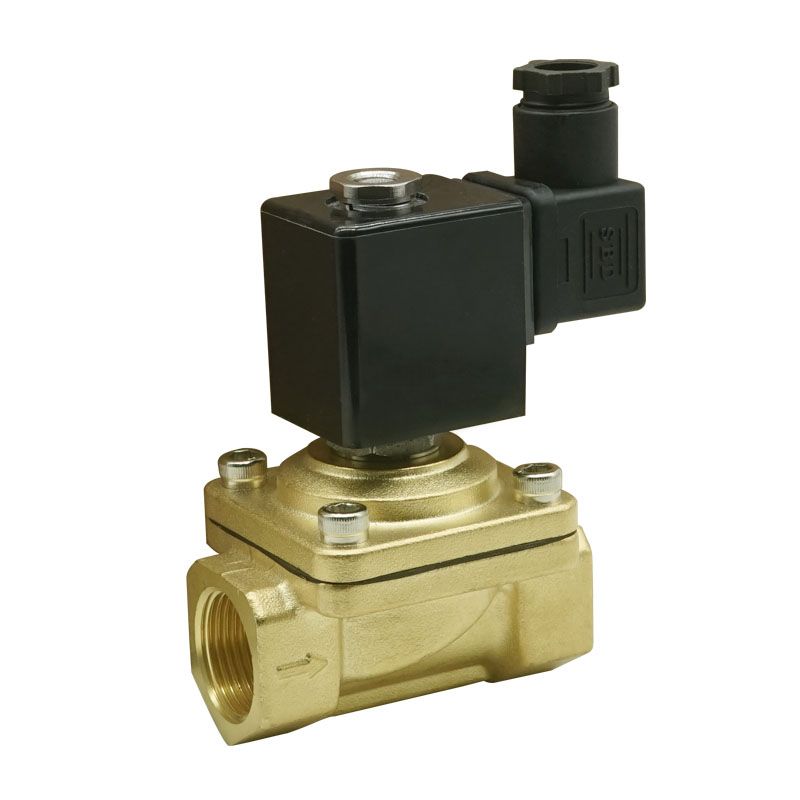

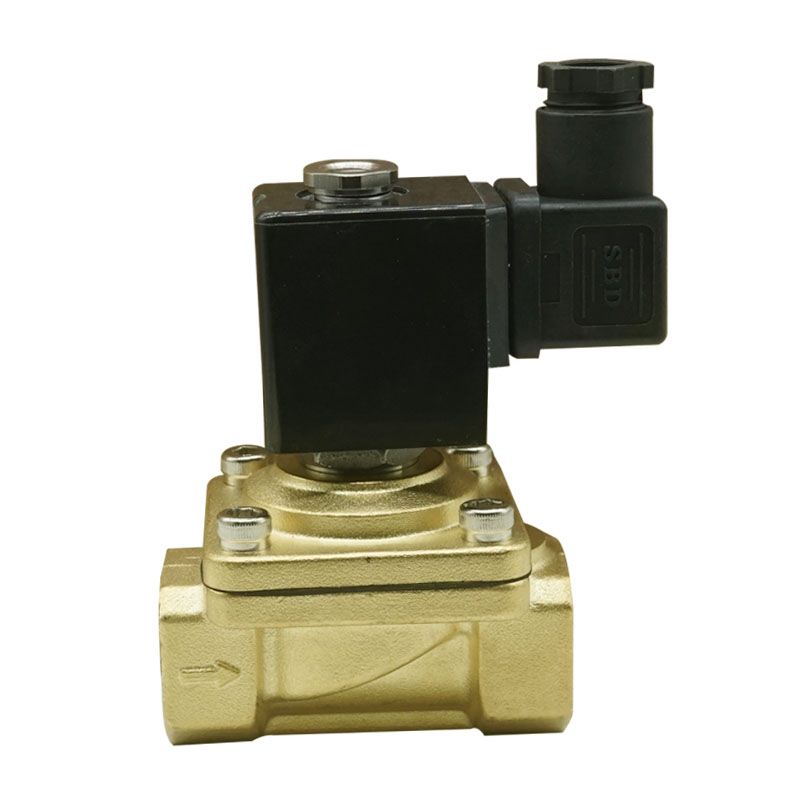

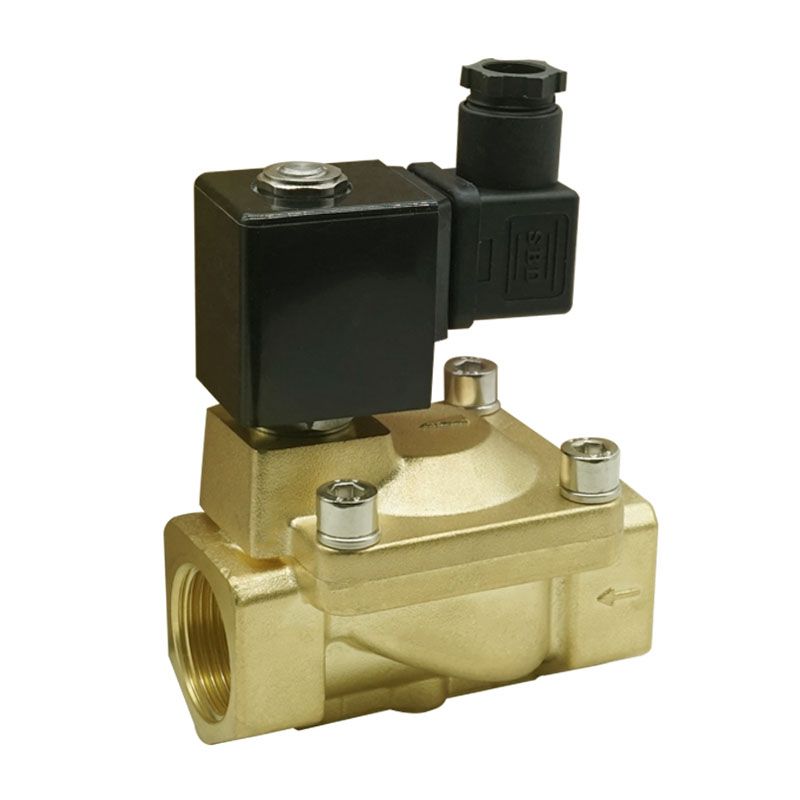

Installation and usage
- Before use, check whether the components are damaged during transportation, and then install and use.
- During installation, pay attention to whether the medium flow direction and the pipe thread are correct (the medium must be filtered through a filter screen of 40μm or above).
- Pay attention to whether the installation conditions meet the technical requirements (such as rated voltage, operating frequency, working pressure, operating temperature range, etc.), and then install it horizontally.
- Try to avoid using it in a vibrating environment and pay attention to anti-freezing measures in low temperatures.
Specifications
|
Model |
PU225-10A |
PU225-15A |
PU225-20A |
PU225-25A |
PU225-35A |
PU225-40A |
PU225-50A |
||
|
Fluid |
Air, water, oil |
||||||||
|
Action |
Direct acting diaphragm |
||||||||
|
Form |
Normally closed |
||||||||
|
Flow aperture |
13 mm2 |
13 mm2 |
25 mm2 |
25 mm2 |
38 mm2 |
38 mm2 |
50 mm2 |
||
|
CV value |
4.5 m3/h |
4.5 m3/h |
12 m3/h |
12 m3/h |
22 m3/h |
30 m3/h |
48 m3/h |
||
|
Port size |
3/8” |
1/2” |
3/4” |
1” |
1-1/8” |
1-1/2” |
2” |
||
|
Medium viscosity |
Less than 50 CST |
||||||||
|
Working pressure |
0.5 to 10 bar |
||||||||
|
Max. pressure |
12 bar |
||||||||
|
Rated voltage |
12 V to 24 VDC, 24 V to 380 VAC, ±10% |
||||||||
|
Power consumption |
22 W, 27 VA |
||||||||
|
Operating temperature |
-5 to 80 ℃ |
||||||||
